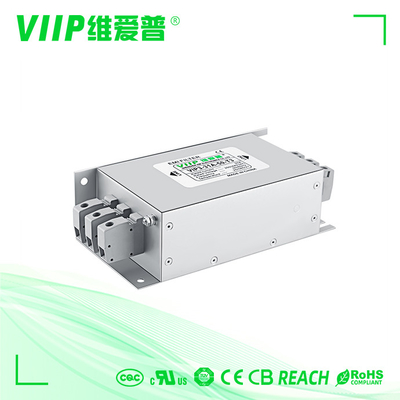

250V 440V Inverter EMI Filter 100A Low Pass EMC Noise Filter

250V 440V Inverter EMI Filter 100A Low Pass EMC Noise Filter
250V 440V Inverter EMI Filter 100A Low Pass EMC Noise Filter

Large Image :  250V 440V Inverter EMI Filter 100A Low Pass EMC Noise Filter

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE TUV UL ROHS REACH
Model Number: VIP6-33M-100
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

250V 440V Inverter EMI Filter 100A Low Pass EMC Noise Filter

Description
Product Name: Inverter Emi Filter Rated Voltage: 110/250VAC
Rated Current: 100A MOQ: 5 PCS
Certification: CE ROHS Case: Metal
High Light:

250V 440V Inverter EMI Filter

,

100A Low Pass EMC Noise Filter

,

440V Low Pass EMC Noise Filter

250V 440V Inverter EMI Filter Low Pass Noise EMC Filter Hardware Equipment



Description:



1, Rated currents from 6A to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, 520v ,690VAC ca be optional for OEM

Specification:



Item Inverter EMI Filter
Model Inverter EMI Filter - VIP6 Series
Original of country China
Package Type Surface Mount
Nominal working Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 380V/440V
Current 100A
 MOQ 1 PCS
Temperature  25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 2250VDC
Line to Ground 2700VDC
  110VAC/60HZ 1.4mA
MOQ 5pcs
Port  Shenzhen
Leading Time 3~15 weekday for Low Pass EMI Filter







Tabulates:







250V 440V Inverter EMI Filter 100A Low Pass EMC Noise Filter 0

Electrical schematic:

250V 440V Inverter EMI Filter 100A Low Pass EMC Noise Filter 1

Mechanical Dimension(Unit: mm)



250V 440V Inverter EMI Filter 100A Low Pass EMC Noise Filter 2



Applications:



1. Mainframe computer systems



2. Servo motor



3. UPS/SMPS



4. Industrial electronic equipment by using frequency conversion principle



Our Advantages



(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.


(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.


(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.


(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
