Product Details:
|
| Rated Voltage: | 110/250VAC | Rated Current: | 40A |
|---|---|---|---|
| Nominal Center Frequency: | 50/60Hz | Type: | EMC Filter |
| Application: | VFD Inverter | Input Impedance: | 50Ω |
| High Light: | 40A 3 Phase VFD Emi Filters,40A VFD Emi Filter For Test Equipment,Medical 40A VFD Emi Filter 50Hz |
||

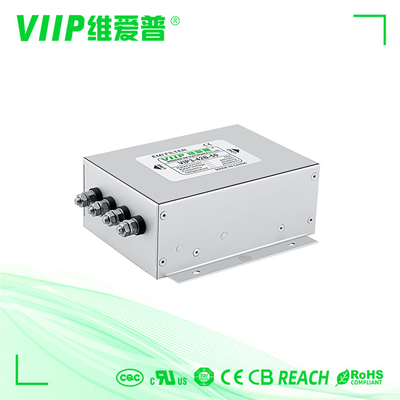

40A 3 Phase Inverter EMI Filter Emi Suppression Filters For Medical Applications
Description:
1, Rated currents from 6A to 2000A
2, High attenuation performance up to 30 MHz
3, Voltage rating 440VAC for worldwide acceptance
4, Approvals: CE, ROHS
Specification:
| Item | Inverter EMI Filter |
| Model | EMI Filter - VIP6 Series |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal working Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Current | 40A |
| Working Temperature | 40°C |
| Temperature | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 2250VDC |
| Line to Ground | 2700VDC |
| 110VAC/60HZ 1.4mA | |
| MOQ | 5pcs |
| Port | Shenzhen |
| Leading Time | 3~15 days for Low Pass EMI Filter |
Specifications:
Applications :
Specially designed for LCD and PDP TV,medical applications,general electrical appliances
Medical equipment
Test and measurement equipment
Small and medium-sized machines and household equipment
Our Advantages
(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
