3 Phase EMI Filter

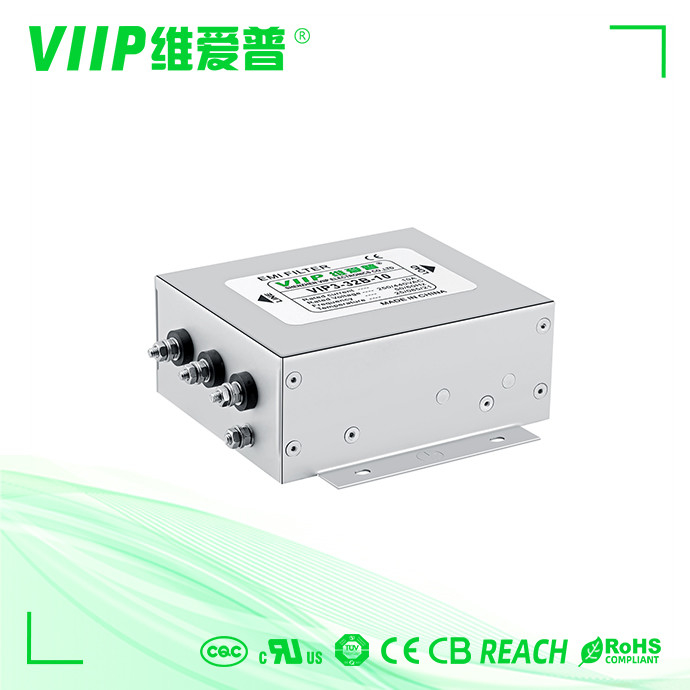

150A 3 Phase EMI Filter For VFD Inverter EMI Suppression Filters

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

150A 3 Phase EMI Filter For VFD Inverter EMI Suppression Filters

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-31A-150
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Rated Voltage:

110/250VAC

Rated Current:

Nominal Center Frequency:

50/60Hz

1 PCS

Type:

EMC Filter

Application:

VFD Inverter

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

150A 3 Phase EMI Filter For VFD

150A 3 Phase EMI Suppression Filters

3 Phase EMI Filter For VFD Inverter

Product Description

150A 3 Phase EMI Filter Emi Suppression Filters For VFD Inverter

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

Specification:

Item	3 Phase EMI Filter
Model	3 Phase EMI Filter - VIP3 Series
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal working Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Current	150A
Working Temperature	40°C
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
	110VAC/60HZ 1.4mA
MOQ	5pcs
Port	Shenzhen
Leading Time	3~15 weekday for Low Pass EMI Filter

Specifications:

150A 3 Phase EMI Filter For VFD Inverter EMI Suppression Filters 0

150A 3 Phase EMI Filter For VFD Inverter EMI Suppression Filters 1

Applications:

Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc

FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer for EMI/EMC Products located in Shenzhen Guangdong China.

About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.

About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
