Name: 40A 3 Phase EMI Filter 380V 440V 30mhz Low Pass Filter
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP3-31A-40
Price: 25.00 USD
Availability: InStock

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-31A-40
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Product Name:

AC 3 PHASE EMI FILTERS

Rated Voltage:

110/250VAC

Rated Current:

40A

MOQ:

5 PCS

Type:

EMC Filter

Application:

Electronic Equipments

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Yes

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

40A 3 Phase EMI Filter 380V

380V 440V 30mhz Low Pass Filter

40A 30mhz Low Pass Filter

Product Description

380V 440V 3 Phase EMI Filter Low Pass Noise EMC Filter Print Machine

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

Specification:

Item	VIIP 3-phase 3-line EMI filter
Part Number	VIP3-31A-40
Rated voltage	250/440VAC,50/60Hz
Operating frequency	DC to 60Hz
Rated currents	3~200A@40°C
Hipot Rating	L-L 2250VDC
	L-G 2700VDC
Climatic category	-25°C~+85°C(25/85/21)
Design corresponding to	UL1283, CSA C22.2 No.8,
	IEC/EN 60939,
	CQC GB 15288/GB 15287-2008
Flammability	UL 94V-0

Specifications:

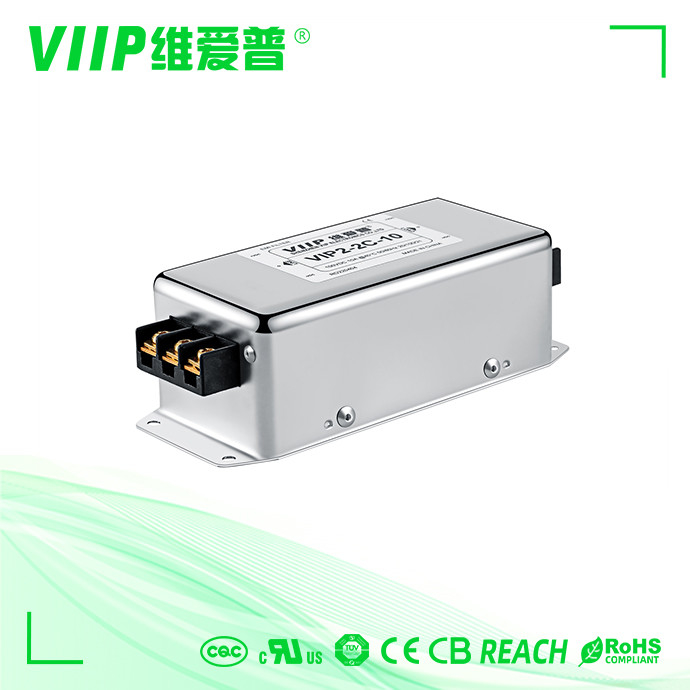

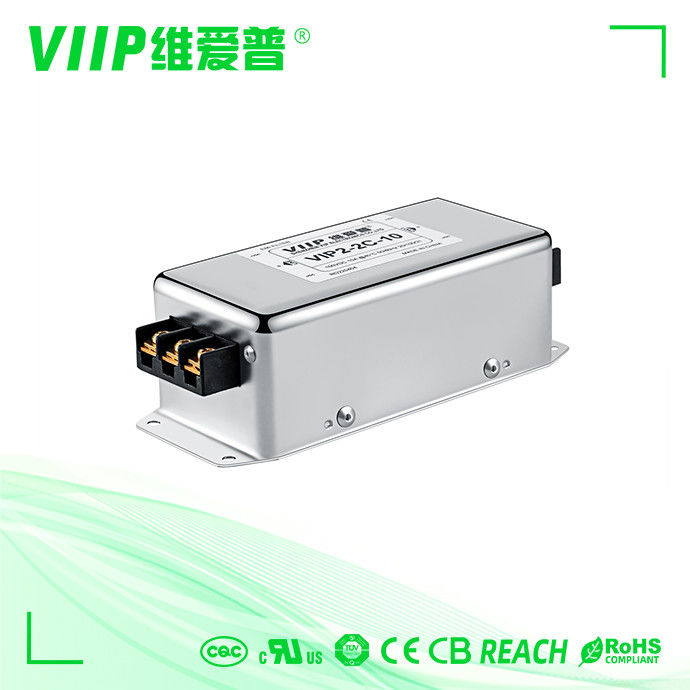

40A 3 Phase EMI Filter 380V 440V 30mhz Low Pass Filter 0

40A 3 Phase EMI Filter 380V 440V 30mhz Low Pass Filter 1

Applications:

such as print machine

packing machine

textile equipment

industry air conditioner

UPS

medical equipment

Our service

Sample

Sample Fee: Negotiate

Sample Time: 3~5 days

Payment

---Payment terms: Western Union, T/T

---Please remember to leave the correct contact information for delivery.
