3 Phase EMI Filter

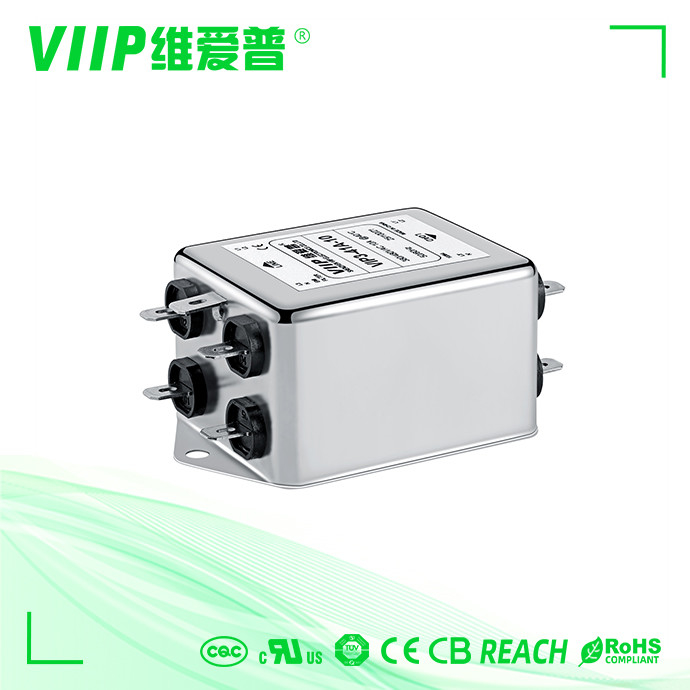

Multi Stage Three Phase Emi Filter 50A For Textile Equipment

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

Multi Stage Three Phase Emi Filter 50A For Textile Equipment

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-31A-50
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Product Name:

AC 3 PHASE EMI FILTERS

Rated Voltage:

110/250VAC

Rated Current:

5 PCS

Type:

EMC Filter

Certification:

CE ROHS

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Multi Stage Three Phase Emi Filter

Emi Filter 50A For Textile Equipment

Three Phase Emi Filter 50A

Product Description

Three Phase Multi Stage 3 phase emi filter 50A textile equipment

Description:

Protection against interference of voltage.

Advanced two-stage filtering circuits with high saturating resistant toroidal inductors

Customized products according to customer's requirements

Specification:

Item	VIIP 3-phase 3-line EMI filter
Part Number	VIP3-31A-50
Rated voltage	250/440VAC,50/60Hz
Operating frequency	DC to 60Hz
Rated currents	3~200A@40°C
Hipot Rating	L-L 2250VDC
	L-G 2700VDC
Climatic category	-25°C~+85°C(25/85/21)
Design corresponding to	UL1283, CSA C22.2 No.8,
	IEC/EN 60939,
	CQC GB 15288/GB 15287-2008
port	Shenzhen

Specifications:

Multi Stage Three Phase Emi Filter 50A For Textile Equipment 0

Multi Stage Three Phase Emi Filter 50A For Textile Equipment 1

Applications:

Applications requiring high-frequency attenuation

High power office equipment

Office and data processing equipment

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.

(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.

(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.

(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
