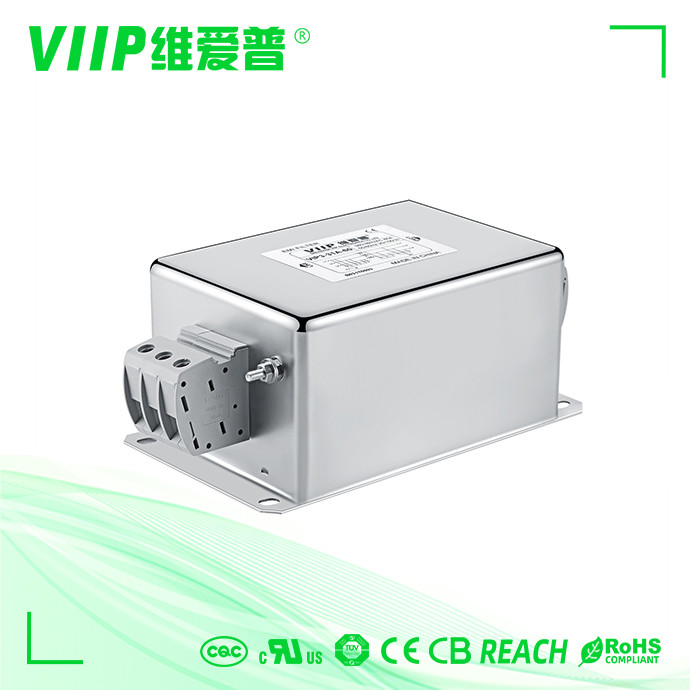

380V 440V 3 Phase EMI Filter Low Pass Noise EMC Filter With Screw production automation
Description:
1, Rated currents from 0.5 to 2000A
2, High attenuation performance up to 30 MHz
3, Voltage rating 440VAC for worldwide acceptance
4, Approvals: CE, ROHS
Specification:
| Item | 3 Phase EMI Filter |
| Model | 3 Phase EMI Filter - VIP3 Series |
| Original of country | China |
| Package Type | Surface Mount |
| Nominal working Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Current | 10A |
| Working Temperature | 40°C |
| Temperature | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 2250VDC |
| Line to Ground | 2700VDC |
| 110VAC/60HZ 1.4mA | |
| MOQ | 5pcs |
| Port | Shenzhen |
| Leading Time | 3~15 weekday for Low Pass EMI Filter |
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| VIP3-31A-06 | 6A | <2.0mA | Fig 1 | Fig 1 | M4 | 380 |
| VIP3-31A-10 | 10A | <2.0mA | Fig 1 | Fig 1 | M4 | 510 |
| VIP3-31A-20 | 20A | <2.0mA | Fig 1 | Fig 1 | M4 | 600 |
| VIP3-31A-30 | 30A | <2.0mA | Fig 1 | Fig 1 | M6 | 640 |
| VIP3-31A-40 | 40A | <2.0mA | Fig 1 | Fig 1 | M6 | 640 |
| VIP3-31A-50 | 50A | <3.0mA | Fig 2 | Fig 1 | M6 | 1000 |
| VIP3-31A-80 | 80A | <7.0mA | Fig 2 | Fig 1 | M8 | 3000 |
| VIP3-31A-100 | 100A | <7.0mA | Fig 2 | Fig 1 | M8 | 3000 |
| VIP3-31A-150 | 150A | <7.0mA | Fig 2 | Fig 1 | M10 | 3200 |
| VIP3-31A-200 | 200A | <7.0mA | Fig 2 | Fig 1 | M10 | 3200 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
| A | B | C | E | F | G | H | I | J | K | L | M | N | p | Q | |
| 6A | 72 | 65 | 38 | 85 | 106 | 45 | 75 | Φ4.0 | 6 | 40 | 26 | 12 | 42 | 22 5 | M4 |
| 10A | 72 | 65 | 38 | 85 | 106 | 45 | 75 | Φ4.0 | 6 | 40 | 26 | 12 | 42 | 22 5 | M4 |
| 20A | 72 | 65 | 38 | 85 | 104 | 45 | 75 | Φ4.0 | 6 | 40 | 26 | 12 | 3 3 | 22 5 | M4 |
| 30A | 96 | 80 | 42 | 105 | 137 | 50 | 95 | Φ4.0 | 6 | 42 | 26 | 9 | 3 6 | 29 5 | M6 |
| 40A | 96 | 80 | 42 | 105 | 137 | 50 | 95 | Φ4.0 | 6 | 42 | 26 | 9 | 36 | 29 5 | M6 |
| 50A | 120 | 100 | 50 | 130 | 160 | 60 | 115 | Φ4.0 | 6 | 50 | 28 | 10 | 3 1 | 25 | M6 |
| 80A | 200 | 127 | 80 | 170 | 264 | 116 | 150 | Φ6 0 | 9 | 70 | 50 | 20 | 9 | 46 | M8 |
| 100A | 200 | 127 | 80 | 170 | 264 | 116 | 150 | Φ6 0 | 9 | 70 | 50 | 20 | 9 | 46 | M8 |
| 150A | 200 | 127 | 80 | 170 | 264 | 116 | 150 | Φ6 0 | 9 | 70 | 50 | 20 | 48 | 46 | M10 |
| 200A | 200 | 127 | 80 | 170 | 263 | 116 | 150 | Φ6 0 | 9 | 70 | 50 | 20 | 44 | 46 | M10 |
| tolerance | 士1 | ±1 | ±1 | 土1 | 士1 | 士0 5 | 士0 5 | 士0 5 | 土0 5 | 士0 5 | 土0 5 | 士0 5 | 士0 5 | ±0 5 |
Applications:
such as print machine
packing machine
textile equipment
industry air conditioner
UPS
medical equipment
FAQ
About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.
About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.
About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
About Service
Q: Which payments are acceptable?
A:We accept T/T, Paypal, Western Union ect.
Q: Can I visit your company and factory in China?
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces.
|
|
