| Brand Name: | VIIP |
| Model Number: | VIP4-3A-20 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |

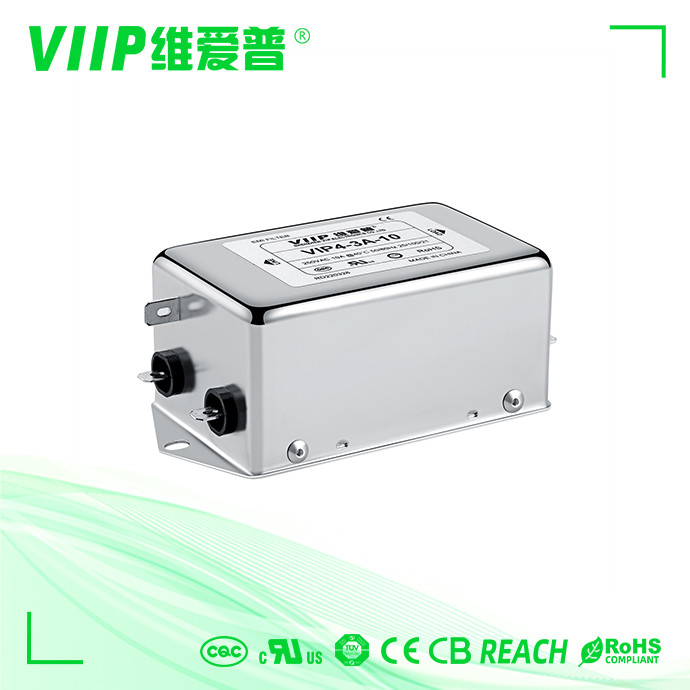

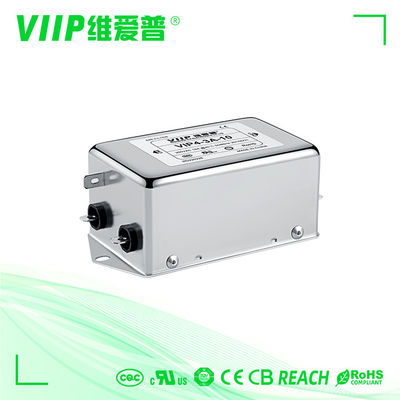

| Item | Power line EMI Filter |
| Model | VIP4-3A-20 |
| port | Shenzhen |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10Khz-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 20A |
| Environmental Temperature | 40°C |
| Temperature Range | -25℃~+85℃ |
| Operating Frequency | 50/60HZ |
| Line to Line | 1760VDC |
| Line to Ground | 2000VDC |
| Samples | available |
| MOQ | 1 PCS |
| Price | Negotiated |
| Lead Time | 3~20 days |
Features:
-- high performance with common and differential mode attenuation performance
-- Various terminal options allow you to select
-- There are a variety of parts and combinations to meet different customer's EMC tests.
-- 380VAC are also available
Applications:
1. Electrical and electronic equipment
2. Single phase servo motor
3. Datacom equipment
4. inverters and converters
5. Charging post
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-3A-01 | 1A | <1.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 95 |
| VIP4-3A-03 | 3A | <1.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 145 |
| VIP4-3A-06 | 6A | <1.5mA | Fig 3 | Fig 1 | M4 | - - - | - - - | 450 |
| VIP4-3A-10 | 10A | <2.5mA | Fig 3 | Fig 1 | M4 | - - - | - - - | 550 |
| VIP4-3A-20 | 20A | <2.5mA | Fig 3 | Fig 1 | M6 | - - - | - - - | 550 |
| VIP4-3A-50 | 50A | <2.5mA | Fig 3 | Fig 1 | M6 | - - - | - - - | 3300 |
| VIP4-3A-100 | 100A | <4.0mA | Fig 3 | Fig 1 | M8 | - - - | - - - | 3400 |
| VIP4-3A-150 | 150A | <4.0mA | Fig 3 | Fig 1 | M10 | - - - | - - - | 3600 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Our service
Sample
Sample Fee: Negotiate
Sample Time: 3~5 days
Payment
---Payment terms: Western Union, T/T
---Please remember to leave the correct contact information for delivery.
|
|
