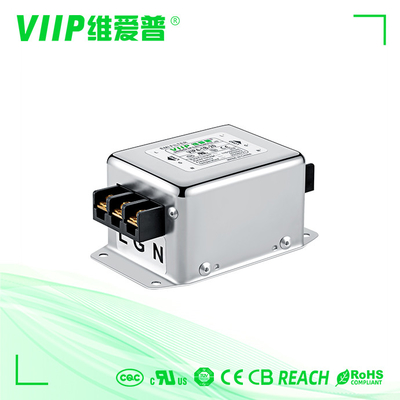

VIIP Charging Post EMC EMI Filter 6A Electromagnetic Interference Filter

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

VIIP Charging Post EMC EMI Filter 6A Electromagnetic Interference Filter

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-3A-06
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Type:

EMI EMC Filter

Operating Frequency:

50/60HZ

Rated Current:

Case:

Metal

Application:

Charging Post

Certification:

CE ROHS,ISO & TUV

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Charging Post EMC EMI Filter 6A

VIIP Charging Post EMC EMI Filter

VIIP 6A Electromagnetic Interference Filter

Product Description

charging post EMC Emi Filter Electromagnetic Interference Filter

Quick Detail:

Item	Power line EMI Filter
Model	VIP4-3C-06
Original of country	China
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	6A
Environmental Temperature	40°C
Temperature Range	-25℃~+85℃
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2000VDC
Samples	available
MOQ	1 PCS
Price	Negotiated
Lead Time	3~20 workdays

Features:

-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- 380VAC are also available

Applications:

1. Electrical and electronic equipment

2. Single phase servo motor

3. Datacom equipment

4. inverters and converters

5. Charging post

6. Electric vehicle

Specifications:

VIIP Charging Post EMC EMI Filter 6A Electromagnetic Interference Filter 0

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.

(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.

(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.

(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
