Brand Name: | VIIP |
Model Number: | VIP4-2B-20 |
MOQ: | Negotiable |
Price: | Negotiable |
Packaging Details: | 33*33*18 |
Payment Terms: | T/T, Western Union |

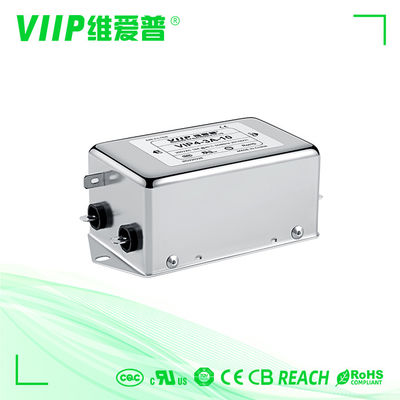

Item | Power line EMI Filter |
Model | VIP4-1B-20 |
Original of country | China |
Package Type | Surface Mount |
Nominal Center Frequency | 150K-30MHZ |
Insertion Loss | 60~90dB |
Input Impedance | 50Ω |
Rated Voltage | 110V/250V |
Rated Current | 0.5~300A |
Environmental Temperature | 40°C |
Temperature Range | -25℃~+85℃ |
Operating Frequency | 50/60HZ |
Line to Line | 1760VDC |
Line to Ground | 2000VDC |
Maximum Leakage Current | 0.4mA/115V,60HZ; 0.8mA/250V, 50HZ |
MOQ | Negotiated |
Price | Negotiated |
Lead Time | 15~20 workdays |
Features:
-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device
-- Various terminal options allow you to select
-- There are a variety of parts and combinations to meet different customer's EMC tests.
-- Customized products according to customer's requirements.
Specifications:
Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
screw | terminal block | wires | ||||||
VIP4-2A-01 | 1A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 |
VIP4-2A-03 | 3A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 |
VIP4-2A-06 | 6A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 |
VIP4-2A-10 | 10A | <1.0mA | Fig4 | Fig 1 | - - - | 0 | - - - | 170 |
VIP4-2B-06 | 6A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
VIP4-2B-10 | 10A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
VIP4-2B-20 | 20A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 321 |
VIP4-2B -50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 1400 |
VIP4-2B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 2000 |
VIP4-2B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 3000 |
VIP4-2C-01 | 1A | <0.5mA | Fig 1 | Fig 3 | M10 | - - - | 0 | 65 |
VIP4-2C-03 | 3A | <0.5mA | Fig 2 | Fig 3 | M10 | - - - | 0 | 95 |
VIP4-2C-06 | 6A | <1.0mA | Fig4 | Fig 3 | M4 | 0 | - - - | 175 |
VIP4-2C-10 | 10A | <1.0mA | Fig4 | Fig 3 | M4 | 0 | - - - | 175 |
VIP4-2C-20 | 20A | <1.0mA | Fig 5 | Fig 3 | M4 | - - - | - - - | 600 |
VIP4-2C-50 | 50A | <2.0mA | Fig 5 | Fig 3 | M6 | - - - | - - - | 1600 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
FAQ
About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.
About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.
About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
About Service
Q: Which payments are acceptable?
A:We accept T/T, Paypal, Western Union ect.
Q: Can I visit your company and factory in China?
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces.
