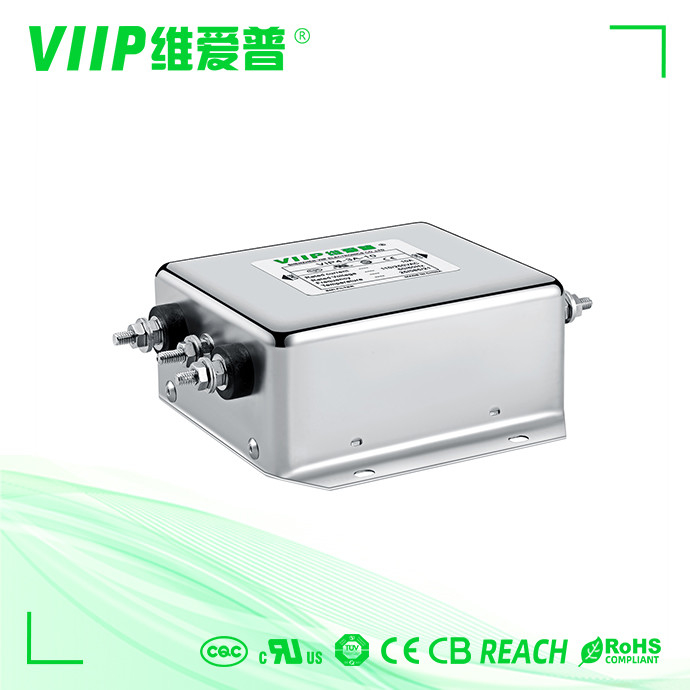

Low Pass EMI Filter 10A Metal Case Power Line EMC Filters

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

Low Pass EMI Filter 10A Metal Case Power Line EMC Filters

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-2B-10
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Type:

EMI EMC Filter

Transfer Function:

Low Pass

Temperature Range:

25 / 085 / 21

Case:

Plastic

Operating Frequency:

50/60HZ

Application:

Medical Equipment

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Low Pass EMI Filter 10A

Metal Case Power Line EMC Filters

Low Pass 10A Power Line EMC Filters

Product Description

Low Pass EMI EMC Line Filter Metal Case Metal Cover 10A

Quick Detail:

Item number	VIP4-2B-10
Package Type	Surface Mount
Nominal Center Frequency	10KHZ-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	10A
Original of Country	China
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2200VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	5pcs
Packing	neutral packing
Lead Time	5~15 weekly days

Features:

-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- Customized products according to customer's requirements.

Specifications:

Low Pass EMI Filter 10A Metal Case Power Line EMC Filters 0

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.

(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.

(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.

(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer
