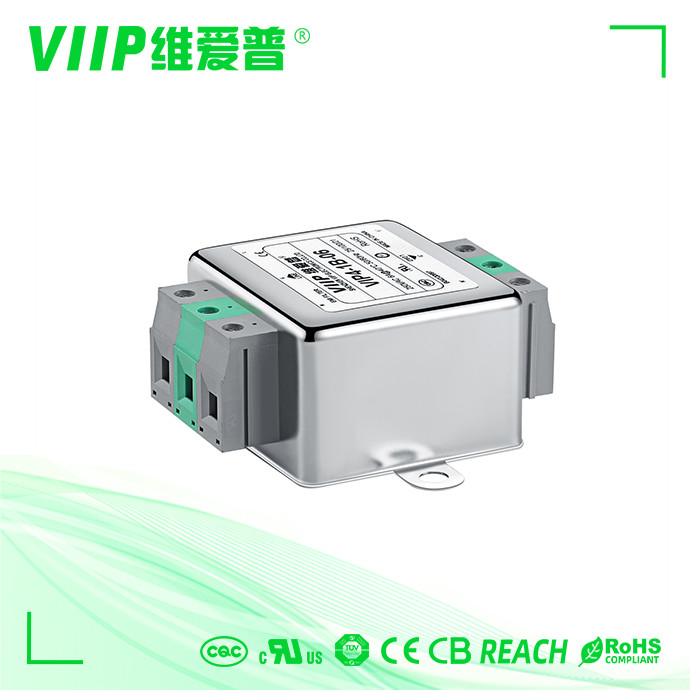

Termilar Block AC EMI Filter 110V 250V Common Mode And Differential Mode Filter

Termilar Block AC EMI Filter 110V 250V Common Mode And Differential Mode Filter
Termilar Block AC EMI Filter 110V 250V Common Mode And Differential Mode Filter

Large Image :  Termilar Block AC EMI Filter 110V 250V Common Mode And Differential Mode Filter

Product Details:
Place of Origin: China
Brand Name: VIIP
Model Number: VIP4-2B-20
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

Termilar Block AC EMI Filter 110V 250V Common Mode And Differential Mode Filter

Description
Certification: CE ROHS,CE CQC Type: AC Single Filter
Rated Voltage: 110/250VAC Transfer Function: Low Pass
Application: Electronic Equipments Package Type: Surface Mount
High Light:

AC EMI Filter 110V 250V

,

common mode and differential mode filter

,

Termilar Block AC EMI Filter

20A AC EMI Filter Excellent Differential Common Mode Attenuation Power Emi Filter

Quick Detail:



Item number VIP4-2B-20
Package Type Surface Mount
Nominal Center Frequency 10KHZ-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 20A
Environmental Temperature 40°C
Temperature 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2200VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 5pcs
PORT Shenzhen
Lead Time 5~15 working days







Features:



-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device



-- Various terminal options allow you to select



-- There are a variety of parts and combinations to meet different customer's EMC tests.



-- Customized products according to customer's requirements.



Specifications:

Termilar Block AC EMI Filter 110V 250V Common Mode And Differential Mode Filter 0
