AC EMI Filter
>

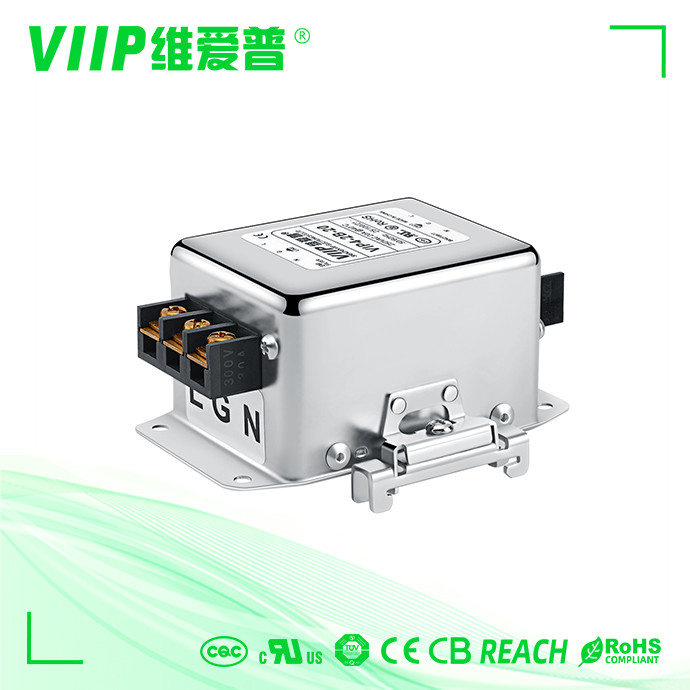

60-90dB Attenuation Low Pass Filter 20A 3 Phase Ac Line Filter

60-90dB Attenuation Low Pass Filter 20A 3 Phase Ac Line Filter

Brand Name: VIIP
Model Number: VIP4-2B-20
MOQ: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE TUV ROHS REACH
Type:
AC Single Filter
Rated Current:
20A
Rated Voltage:
110/250VAC
Nominal Center Frequency:
10KHZ~30MHZ
Transfer Function:
Low Pass
Application:
Electronic Equipments
Supply Ability:
2000 pcs within 10-15 days
Highlight:

Attenuation Low Pass Filter 20A

,

90dB Attenuation Low Pass Filter

,

20A 3 Phase Ac Line Filter

Product Description

20A AC EMI Filter Excellent Differential Common Mode Attenuation Power Emi Filter

Quick Detail:



Item number VIP4-2B-20
Package Type Surface Mount
Nominal Center Frequency 10KHZ-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 20A
Environmental Temperature 40°C
Temperature 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2200VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 5pcs
PORT Shenzhen
Lead Time 5~15 working days



General purpose single phase AC power line filters ,easy to install ,available for



--Electrical and electronic equipment



-- Medical equipment



-- Building automation



--Industrial  automation



-- Office automation and datacom equipment







Specifications:

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-2A-01 1A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-03 3A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-06 6A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-10 10A <1.0mA Fig4 Fig 1 - - - 0 - - - 170
VIP4-2B-06 6A <1.0mA Fig4 Fig 2 M4 0 - - - 170
VIP4-2B-10 10A <1.0mA Fig4 Fig 2 M4 0 - - - 170
VIP4-2B-20 20A <1.0mA Fig4 Fig 2 M4 0 - - - 321
VIP4-2B -50 50A <2.0mA Fig 5 Fig 2 M6 - - - - - - 1400
VIP4-2B-100 100A <2.0mA Fig 5 Fig 2 M6 - - - - - - 2000
VIP4-2B-200 200A <2.0mA Fig 5 Fig 2 M8 - - - - - - 3000
VIP4-2C-01 1A <0.5mA Fig 1 Fig 3 M10 - - - 0 65
VIP4-2C-03 3A <0.5mA Fig 2 Fig 3 M10 - - - 0 95
VIP4-2C-06 6A <1.0mA Fig4 Fig 3 M4 0 - - - 175
VIP4-2C-10 10A <1.0mA Fig4 Fig 3 M4 0 - - - 175
VIP4-2C-20 20A <1.0mA Fig 5 Fig 3 M4 - - - - - - 600
VIP4-2C-50 50A <2.0mA Fig 5 Fig 3 M6 - - - - - - 1600





Electrical schematic:

60-90dB Attenuation Low Pass Filter 20A 3 Phase Ac Line Filter 0

Mechanical Dimension(Unit: mm)



60-90dB Attenuation Low Pass Filter 20A 3 Phase Ac Line Filter 1









  •
