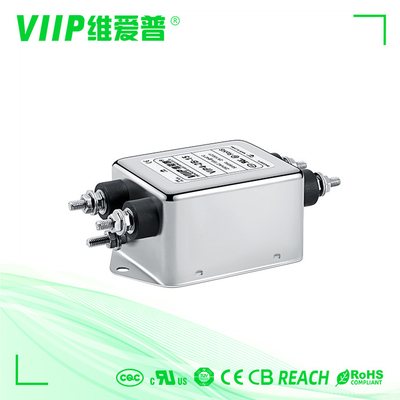

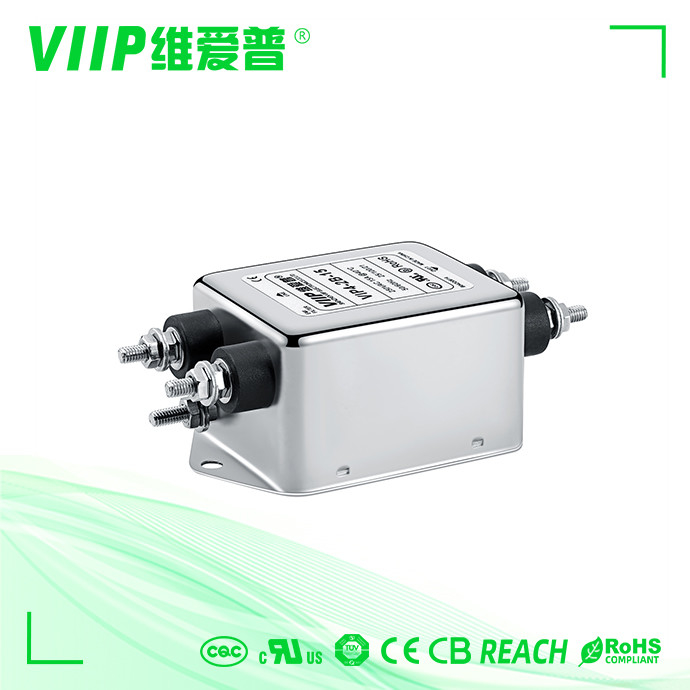

Name: Medical Equipment Single Phase Emi Filter 6A 120V 250V Ac Power Line Filter
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP4-1A-06
Price: 6.00 USD
Availability: InStock

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-1A-06
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Rated Current:

Type:

EMC Filter

Rated Voltage:

110/250VAC

Transfer Function:

AC EMI Filter

Insertion Loss:

At 50OHM System

Nominal Center Frequency:

150KHZ~30MHZ

Input Impedance:

500VDC/100MOHM MIN

Certification:

CE ROHS

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Yes

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Single Phase Emi Filter 6A 120V

Medical Equipment Single Phase Emi Filter 6A

120V 250V Ac Power Line Filter

Product Description

Medical Equipment AC Single phase emi filter Power Supply Filter 6A 120V 250V

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument

There are a variety of parts and combinations to meet different customer's EMC tests.

Customized products according to customer's requirements.

Quick Detail:

Place of Origin	China
Model Number	VIP4-1A-06
Input Impedance	50Ω
Insertion Loss	30-100dB
Line To Line	1760VDC
Nominal Center Frequency	150KHZ~30MHZ
Certificate	ISO9001 CE ROHS cUL TUV
Operating Frequency	50/60HZ
Temperature Range	25 / 085 / 21

Specifications:

Medical Equipment Single Phase Emi Filter 6A 120V 250V Ac Power Line Filter 0

Applications:

White household

Smart home

Smart terminal

Power supply

Power & energy

Electrical & electronic equipment

Consumer goods

medical device

datacome equipment

Medical Equipment Single Phase Emi Filter 6A 120V 250V Ac Power Line Filter 1
