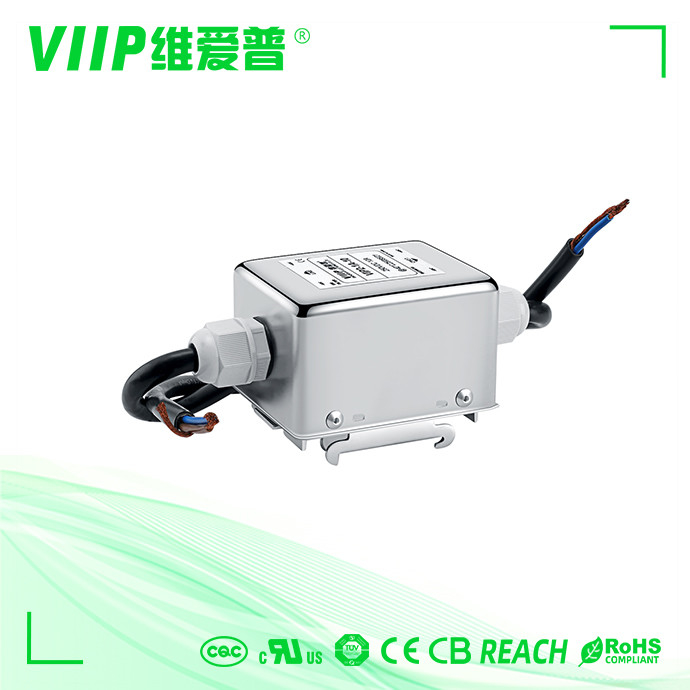

Name: Switch Power Supply DC EMI Filters 50A 2250VDC 150Khz-30Mhz
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP2-1B-50
Price: 14.05 USD
Availability: InStock

Brand Name:	VIIP
Model Number:	VIP2-1B-50
MOQ:	100 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Transfer Function:

DC EMI FILTER

Rated Voltage:

0-250VDC

Current:

Application:

DC Equipment

Supply Ability:

2000 pcs within 10-15 days

Highlight:

2250VDC dc power supply filter

DC EMI Filters 50A 2250VDC

30Mhz DC EMI Filters 50A

Product Description

switch power supply DC power line noise filter emi filter 50A

Quick Detail:

Model Number	VIP2-1B-50
Place of Origin	China
Transfer Function	Low Pass
Test Voltage	DC
Case	Metal Case
Application	switch power supply ,SPC exchange and other DC electric device

Description

General purpose DC filters with good attenuation performance at frequency range 150Khz-30Mhz

PART NUMBER: VIP2-1B-50

CHARACTERISTICS:

(1) VOLTAGE RATING.............................................0-380VDC

(2) CURRENT RATING:...........................................

AT 380VDC .....50A RMS Max.

(3) OPERATING FREQUENCY: 0-400Hz

(4) HIPOT RATING (FOR ONE MINUTE)

A LINE TO GROUND 2250 VDC

B.LINE TO LINE ....... 500VDC

(5) IR:100M ohm AT 500VDC ANY INPUT OR OUTPUT TO GROUND

(6) TEMPERATURE RANGE: -25"C -+85"C

Specifications:

Part No.	Rated Current [A]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
VIP2-2A-01	1A	Fig 1	Fig 1	- - -	- - -	0	95
VIP2-2A-03	3A	Fig 1	Fig 1	- - -	- - -	0	95
VIP2-2A-06	6A	Fig 1/Fig.2	Fig 1	- - -	0	0	95/175
VIP2-2A-10	10A	Fig 2	Fig 1	- - -	0	- - -	175
VIP2-2B-20	20A	Fig.3	Fig.2	M4	- - -	- - -	320
VIP2-2B-30	30	Fig.3	Fig.2	M6	- - -	- - -	320
VIP2-2B-50	50	Fig.4	Fig.2	M6	- - -	- - -	1400
VIP2-2B-100	100A	Fig.4	Fig.2	M8	- - -	- - -	2000

Terminal:

Switch Power Supply DC EMI Filters 50A 2250VDC 150Khz-30Mhz 0

Rated voltage	0-250VDC		Rated current :IR		0.5A-300A
Test voltage	DC		Climatic category		25/085/21 (-25°C/+85°C Damp heat test for 21 days )

Electrical schematics

Switch Power Supply DC EMI Filters 50A 2250VDC 150Khz-30Mhz 1

Mechanical Dimension(Unit: mm)

Switch Power Supply DC EMI Filters 50A 2250VDC 150Khz-30Mhz 2

	A	B	C	D	E	F	G	H	I	J	K	L	M	N	Q
1A	51	33	29	70	--	351	60	--	Φ4.5	--	20	9	19	--	--

3A	51	33	29	70	--	351	60	--	Φ4.5	--	20	9	19	--	--

	51	33	29	70	--	351	60	--	Φ4.5	--	20	9	19	--	--
6A
	51	51	29	73		73	63		Φ4.5	--	25	10	22	15.5	6 3*0 8

10A	51	51	29	73	--	73	63	--	Φ4.5	--	25	10	22	15.5

20A	73	56	45	97	--	105	87	--	Φ4.8	--	24	28.5	12	3.3	M4

30A	73	56	45	97	--	114	87	--	Φ4.8	--	24	28.5	12	3.6	M6

50A	150	105	60	--	135	190	90	120	Φ4.0	6	50	35	15	3.1	M6

100A	200	127	80	--	170	264	116	150	Φ6.0	9	70	50	30	9	M8

tolerance	土1	土1	土1	士1	土1	土1	±1	土0 5	士1	±1	土 0 5	土0 5	士0 5		士0 5

Applications:

switch power supply ,SPC exchange and other DC electric device

Switch Power Supply DC EMI Filters 50A 2250VDC 150Khz-30Mhz 3
