| Brand Name: | VIIP |
| Model Number: | VIP4-1A-06 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Place of Origin: China | Input Impedance: 50Ω |
| Model Number: VIP4-1A-06 | Rated current: 6A |
| Brand Name: VIIP | Rated voltage: 110V/250V |
| Type:AC EMI Filter | Insertion Loss: 30-100dB |
| Transfer Function: Low Pass | Line To Line: 1760VDC |
| Nominal Center Frequency: 150KHZ~30MHZ | Line to ground: 2000VAC |
| Port: SHENZHEN | Certificate: ISO9001 CE ROHS cUL TUV |
| MOQ: 1PCS | Operating Frequency: 50/60HZ |
| Package Type: Surface Mount | Temperature Range: 25 / 085 / 21 |

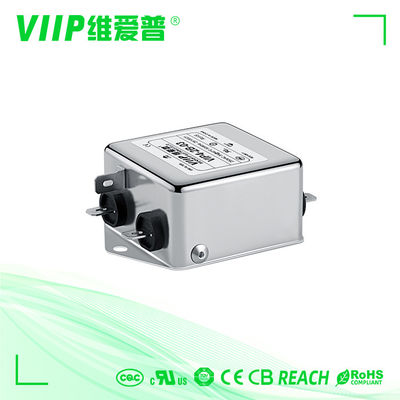

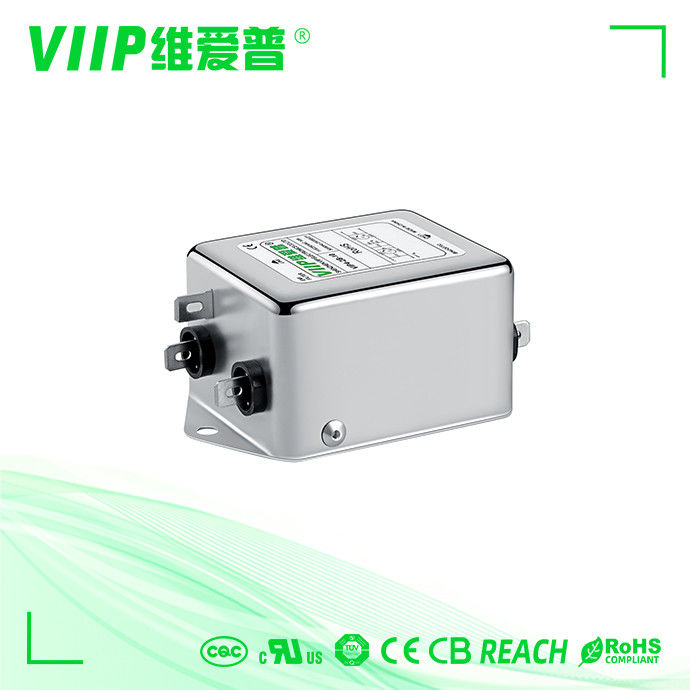

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument
Outline Drawing and Dimensions :
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Applications:
White household
Smart home
Smart terminal
Power supply
Power & energy
Electrical & electronic equipment
Consumer goods
medical device
datacome equipment
FAQ:
Q:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.
Q: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2009.
Q: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us
Q: How about the payment terms?
A: we also accept T/T Western Union, Paypal, etc.
Q: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
|
|
