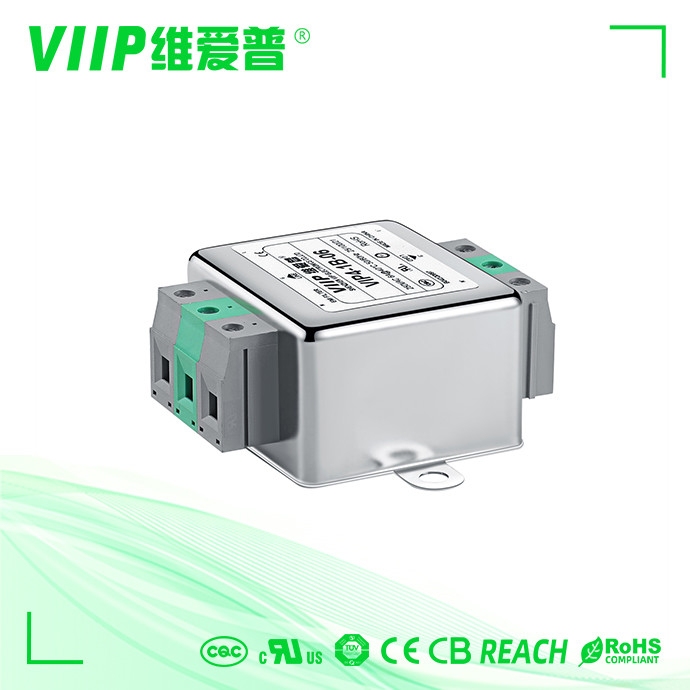

Brand name	VIIP
Model Number	VIP4-1A-10
Input Impedance	50Ω
Type	AC EMI Filter
Transfer Function	Low Pass
Insertion Loss	30-100dB
Operating Frequency	50/60HZ
MOQ:	1PCS
Package Type:	Surface mounted

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument

Outline Drawing and Dimensions :

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP4-1A-01	1A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-03	3A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-06	6A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-10	10A	<0.5mA	Fig 2	Fig 1	- - -	0	- - -	75
VIP4-1B-06	6A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	140
VIP4-1B-10	10A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-20	20A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-30	30A	<1.0mA	Fig 5	Fig 2	M6	- - -	- - -	320
VIP4-1B-50	50A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	600
VIP4-1B-100	100A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	1380
VIP4-1B-150	150A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900
VIP4-1B-200	200A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900

Electrical schematic:

Energy Electrical AC Single Phase EMI Filters 150KHZ-30MHZ Low Pass 0

Mechanical Dimension(Unit: mm)

Energy Electrical AC Single Phase EMI Filters 150KHZ-30MHZ Low Pass 1

Applications:

White household

Smart home

Smart terminal

Power supply

Power & energy

Electrical & electronic equipment

Consumer goods

medical device

datacome equipment

Energy Electrical AC Single Phase EMI Filters 150KHZ-30MHZ Low Pass 2

Tags:

Power Supply Input Filter 30dB

100dB Emi Filter 10A

Metal Case Emi Filter 10A
