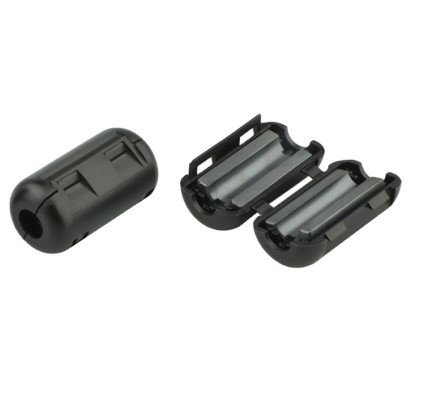

Loudspeaker Cable EMI RFI Clip On Ferrite Core

Loudspeaker Cable EMI RFI Clip On Ferrite Core
Loudspeaker Cable EMI RFI Clip On Ferrite Core
Loudspeaker Cable EMI RFI Clip On Ferrite Core Loudspeaker Cable EMI RFI Clip On Ferrite Core

Large Image :  Loudspeaker Cable EMI RFI Clip On Ferrite Core

Product Details:
Place of Origin: china
Brand Name: VIIP
Certification: Rohs Reach
Model Number: V18002
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 5k For one week

Loudspeaker Cable EMI RFI Clip On Ferrite Core

Description
Type: Snap-on Material: F9
Product Namee: Clip On Ferrite Core Color: Black
Model: V18002 Inner Size: 7mm
Samples: Available Application: Loudspeak Cable
High Light:

Loudspeaker Cable Clip On Ferrite Core

,

EMI RFI Clip On Ferrite Core

,

EMI RFI ferrite cable clip

loudspeaker cable Clip-on Noise Filter Anti-interference High-Frequency Ferrite Core



Description:



RFI EMI Noise Suppressor Cable Clip:EMI RFI Noise Filter Clip;Ferrite core with plastic cover; Helps to reduce EMI on AC power lines.



Ferrite Cores:Reduce electro-magnetic interference and improve signal integrity; Easy to install, just clip it on and you will get clearer signal and faster data transmission.



Specifications:



Place of Origin Guangdong, China
Brand Name VIIP
Model Number

V18002

Type Soft
Composite Ferrite Magnet
Application Industrial Magnet







Specifications:



No. Specifications Fig Dimensions:mm Impedance(Ω)min
ΦA B ΦC D E 25MHz 100MHz
1 V18001A 1 13±1 11.8±1 3.5±0.8 25.2±1 2.5±1 135 260
2 V18001 1 13±1 12±1 5±0.8 25.2±1 2.5±1 90 190
3 V18002 1 16.5±1 14±1 7±0.8 30±1 2.5±1 80 195
4 V18002C 5 20.7±1 39.4±1 7.2±0.5 / / 120 220
5 V18003 1 19.5±1 18±1 9±0.8 35±1 5.5±1 100 240
6 V18004 1 23.5±1 22.2±1 13.5±0.8 36±1 10.5±1 90 190
7 V18005 2 17.5±1 19.5±1 6.5±0.8 32.5±1 / 135 330
8 V18006 2 22±1 23.5±1 10±0.8 33±1 / 90 250
9 V18007 2 29±1 30±1 13±0.8 32.2±1 / 160 280
10 V18008 3 19.5±1 23±1 8±0.8 17±1 23±1 70 140
11 V18009 3 19.5±1 23±1 8±0.8 19.5±1 26±1 80 160
12 V18010 4 15±1 14±1 7±1 18±1 22±1 45 125
13 V18011 4 19.5±1 / 9±1 32±1 36±1 105 185
14 V18011A 4 20.5±1 20.5±1 11±0.8 32±1 36±1 80 155
15 V18011B 3 28±1 31±1 11.4±0.8 17.5±1 23.5±1 75 135
16 V18012 4 30±1 / 13±0.8 34±1 39±1 125 230
17 V18013 5 16.5±1 29.5±1 5±0.8 / / 80 165
18 V18017 4 40.5±1 / 17±1 49.8±1 / 200 350
19 V18018 3 29±1 33±1 15±0.8 15.5±1 21.5±1 55 110
20 V18019 1 19.5±1 18±1 8±0.8 35±1 5.5±1 120 175
21 V18020 3 24±1 27±1 10±0.8 13.5±1 19±1 60 110
22 V18021 1 11.7±1 10.8±1 4±0.8 21.4±1 2.6±1 90 160
23 V18031 2 15±1 14±1 6±1 23±1 / 80 160
24 V18032 1 19.5±1 18.0±1 5.0±1 35±0.8 / 190 320
25 V18033 4 19.5±1 / 8±0.8 32±1 36±1 120 175



Loudspeaker Cable EMI RFI Clip On Ferrite Core 0





Applications:

✔7mm / 0.27in (inner diameter): suitable for 0.2 - 0.27in / 5 - 7mm cables
Application: AV cable, Coaxial Audio, Audio Power Line, IP Serial Port Camera etc.









Loudspeaker Cable EMI RFI Clip On Ferrite Core 1
