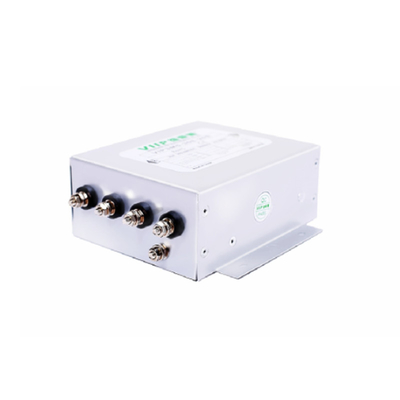

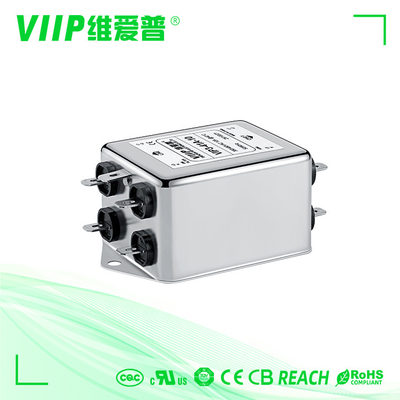

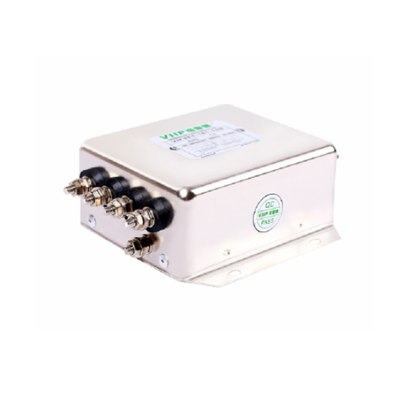

Name: 3 Phase 4 Wire Mains AC Line EMI Filters For Mechanical Equipment
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP3-41A
Price: 14.05 USD
Availability: InStock

Brand Name:	VIIP
Model Number:	VIP3-41A
MOQ:	100 PCS
Price:	usd
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Transfer Function:

AC 3 Phase Power Filter

Insertion Loss:

At 50OHM System

Input Impedance:

500VDC/100MOHM MIN

Rated Voltage:

120/250VAC,125VAC 250VAC

Rated Current:

0.5A-800A

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Mechanical Equipment Mains Emi Filter

4 Wire Mains AC Line EMI Filters

Mains AC 3 Phase EMI Filter

Product Description

3 phase 4 wire emi filter mains electric filter ac line filters for mechanical equipment

Quick Detail:

Model Number:
Type:EMI Filter
Place of Origin:Shenzhen , China
Brand Name: VIIP
Transfer Function:Low Pass
Nominal Center Frequency:10KHz-30MHz
Input Impedance:50Ω
Insertion Loss:20~100dB
Stopband Attenuation:20~100dB
Item:Low Pass EMI Filter
Rated Voltage:440V
Rated Current:0.5A-800A
Environmental Temp:50°C
Temperature Range:25 / 085 / 21
Operating Frequency:50/60HZ
Line to Line:1450VDC
Line to Ground:2250VDC or 2000VAC
Certificate:cUL TUV ISO9001 CE ROHS

Description:

suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specifications:

3 Phase 4 Wire Mains AC Line EMI Filters For Mechanical Equipment 0

3 Phase 4 Wire Mains AC Line EMI Filters For Mechanical Equipment 1

Applications:

Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc

3 Phase 4 Wire Mains AC Line EMI Filters For Mechanical Equipment 2
