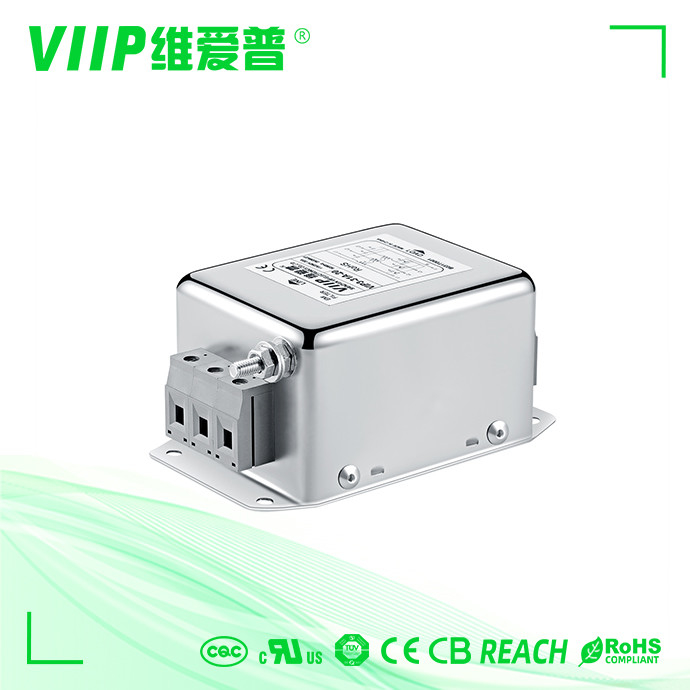

Three Line 3 Phase Ac Line Filter 2250VDC Mains Emi Filter

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-31A-06
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Nominal Center Frequency:

50/60Hz

Transfer Function:

AC 3 Phase Power Filter

Rated Voltage:

110/250VAC

Input Impedance:

500VDC/100MOHM MIN

Rated Current:

1 PCS

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

3 Phase Ac Line Filter 2250VDC

2250VDC Mains Emi Filter

Three Line Ac Mains Emi Filter

Product Description

emi filter 3 phase 3 wire mains electric filter ac line filters for industry air conditioner

Description:

suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specification:

Item	3 Phase EMI Filter
Model	3 Phase EMI Filter - VIP3 Series
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal working Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Current	6A
Working Temperature	40°C
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
Maximum Leakage Current	110VAC/60HZ 1.4mA
MOQ	5pcs
Port	Shenzhen
Lead Time	3~15 weekday for Low Pass EMI Filter

Specifications:

Three Line 3 Phase Ac Line Filter 2250VDC Mains Emi Filter 0

Three Line 3 Phase Ac Line Filter 2250VDC Mains Emi Filter 1

Applications:

Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements

Tags:

3 Phase Ac Line Filter 15A

3 Phase EMC Filter With Screw

380V 440V Noise Filte 3 Phase
