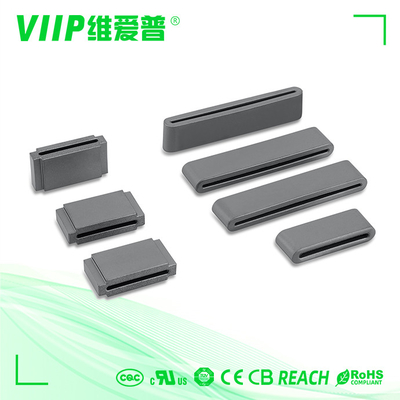

Black F9 Flat Ferrite Core Cable Clip On Rfi Filter Rohs Reach

Black F9 Flat Ferrite Core Cable Clip On Rfi Filter Rohs Reach
Black F9 Flat Ferrite Core Cable Clip On Rfi Filter Rohs Reach
Black F9 Flat Ferrite Core Cable Clip On Rfi Filter Rohs Reach Black F9 Flat Ferrite Core Cable Clip On Rfi Filter Rohs Reach

Large Image :  Black F9 Flat Ferrite Core Cable Clip On Rfi Filter Rohs Reach

Product Details:
Place of Origin: china
Brand Name: VIIP
Certification: Rohs Reach
Model Number: V18015FS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 5k For one week
Contact Now

Black F9 Flat Ferrite Core Cable Clip On Rfi Filter Rohs Reach

Description
Type: Clap-on Material: F9
Product Name: Snap On Ferrite Core Application: For Cables
Color: Black Model: V18015FS
High Light:

Black F9 Flat Ferrite Core

,

ferrite cable clip Rohs Reach

,

F9 ferrite clip on rfi filter

 flat cable EMI suppression nizn ferrite core flat SCFS TYPE



Quick Detail:



  • Place of Origin:Guangdong, China
  • Brand Name:VIIP
  • Model Number:V18015FS
  • Type:Soft
  • Composite:Ferrite Magnet
  • Shape:Cylindrical
  • Application:Industrial Magnet
  • Tolerance:±1%
  • Delivery Time:within 7 days
  • Item name:Flat ferrite
  • Material:F9
  • Impedance:155 ohm min at 100MHz
  • Condition:EMC ,EMI
  • PB Free Status:RoHS REACH
  • Color:Black
  • Operation Temperature:-40 to +125°C

Description:



RFI EMI Noise Suppressor Cable Clip:EMI RFI Noise Filter Clip;Ferrite core with plastic cover; Helps to reduce EMI on AC power lines.



Ferrite Cores:Reduce electro-magnetic interference and improve signal integrity; Easy to install, just clip it on and you will get clearer signal and faster data transmission.



Specifications:



Black F9 Flat Ferrite Core Cable Clip On Rfi Filter Rohs Reach 0

No. Specifications Dimensions:mm Impedance(Ω)min
ΦA B ΦC D E 25MHz 100MHz
1 V18014FS 36±1 9.4±0.8 28±1 14.8±1 2±0.4 45 110
2 V18015FS 37.9±1 12.5±0.8 28±1 18±1 2±0.4 55 110
3 V18016FS 54.4±1 13±0.8 44±1 18.4±1 2±0.4 55 125

Black F9 Flat Ferrite Core Cable Clip On Rfi Filter Rohs Reach 1Black F9 Flat Ferrite Core Cable Clip On Rfi Filter Rohs Reach 2







Black F9 Flat Ferrite Core Cable Clip On Rfi Filter Rohs Reach 3

Tag:

SCFS TYPE Nizn Flat Ferrite Core,

Snap On Ferrite Beads For Emi Suppression,

Nizn ferrite core for noise reduction
