| Brand Name: | VIIP |
| Model Number: | VIP4-1A-10 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Input Impedance | 50Ω |
| Rated current | 10A |
| Brand Name | VIIP |
| Insertion Loss | 30-100dB |
| Transfer Function | Low Pass |
| Nominal Center Frequency: | 150KHZ~30MHZ |
| Certificate | ISO9001 CE ROHS cUL TUV |
| MOQ | 1PCS |
| Package Type | Surface Mount |

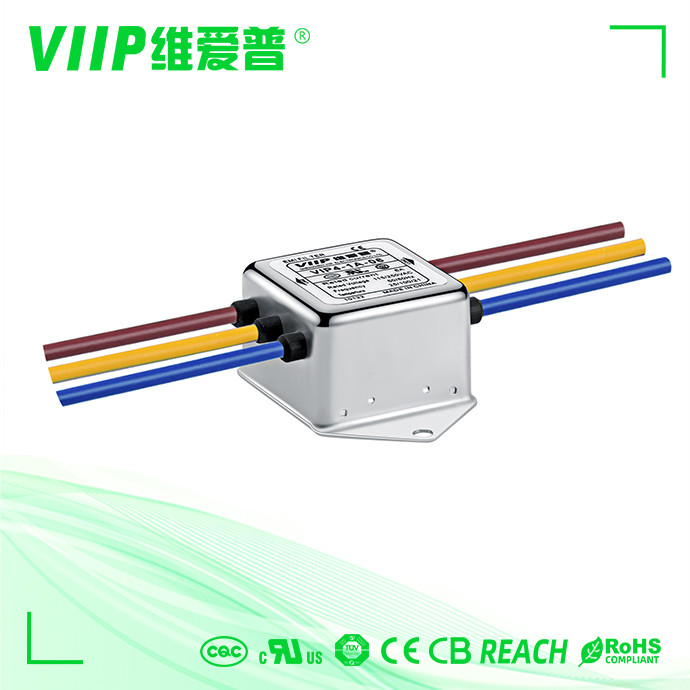

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument
Outline Drawing and Dimensions :
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Applications:
White household
Smart home
Smart terminal
Power supply
Power & energy
Electrical & electronic equipment
Consumer goods
medical device
|
|
