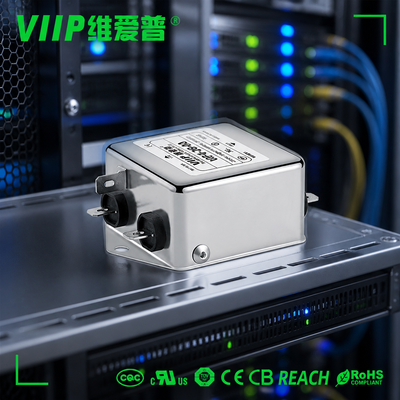

20A Rated Current 115/250VAC RC-LC Dual Stage Single Phase EMI Filter for Medical & Automation

Brand Name:	Weiaipu
Model Number:	VIP4-1B-20(10321)
MOQ:	10PCS
Price:	USD4-8
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Certification:

CQC CB CE TUV UL ROHS REACH

Type:

Single Phase EMI Power Filter

Rated Current:

20A RMS

Rated Voltage:

115/250VAC

Insulation Resistance:

≥100MΩ @500VDC

Mounting:

Panel Mount Compact Size

Supply Ability:

30K/month

Highlight:

20A Rated Current EMI Filter

115/250VAC Rated Voltage Power Line Filter

RC-LC Dual Stage Single Phase EMI Filter

Product Description

Export Ready VIIP VIP4-1B-20 20A 1Ph EMI Filter 115/250VAC RC-LC Dual Stage Anti-Interference for Medical & Automation

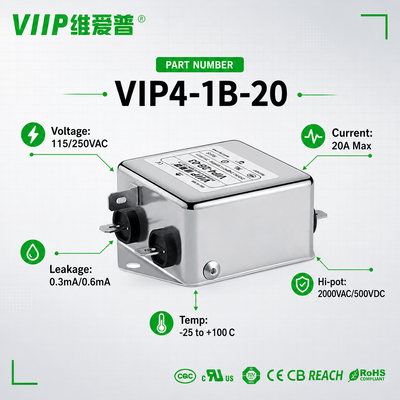

Product Overview

RC-LC Composite Circuit VIP4-1B-20 20A Chassis Mount Single Phase EMI Filter. Industrial-grade single phase EMI filter designed for 115/250VAC applications. This 20A power filter provides effective electromagnetic interference suppression with CE and RoHS compliance for industrial environments.

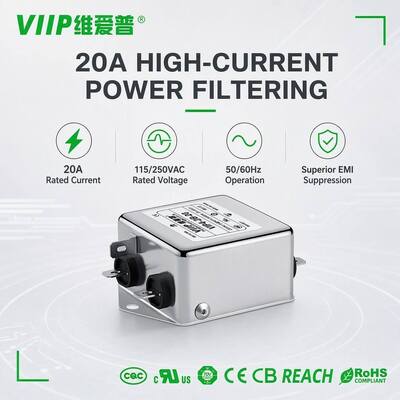

Current Rating: 20A
Voltage: 115/250VAC
Phase: Single Phase
Compliance: CQC CB CE TUV UL ROHS REACH
Application: Electronic equipment requiring connection of stand, Medical Equipment, Laboratory & Precision Test Instruments, Industrial Automation Machinery

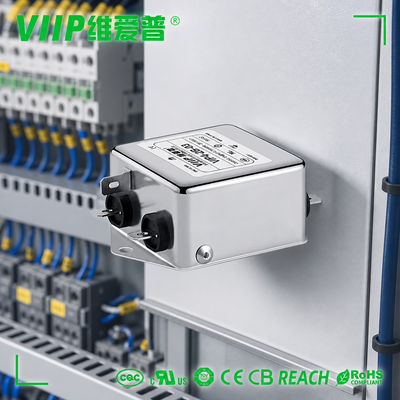

Key Applications

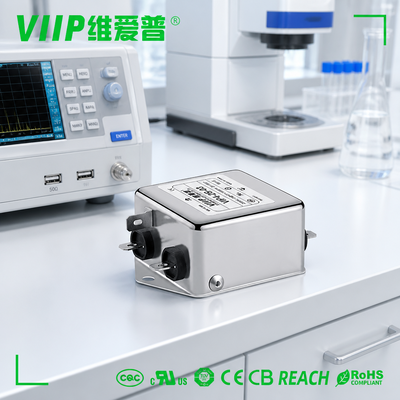

Medical diagnostic equipment, lab testing instruments, industrial automation controllers.

Electrical Characteristics

Parameter	Value	Remarks
Voltage Rating	115 / 250 VAC	AC Voltage
Current Rating @115VAC	20A RMS Max.	At 115V AC input
Current Rating @250VAC	20A RMS Max.	At 250V AC input
Operating Frequency	50 / 60 Hz	Standard Power Frequency
Leakage Current @115VAC/60Hz	0.3 mA Max.	Each Line to Ground
Leakage Current @250VAC/50Hz	0.6 mA Max.	Each Line to Ground
Insulation Resistance	≥100MΩ @500VDC	Input/Output to Ground, 500V DC Test

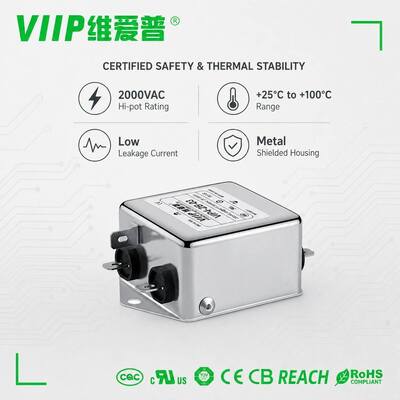

Hi-pot Test Rating	Line-to-Line / Line-to-Ground	Test Duration: 1 Minute
Operating Temperature Range	-25°C ~ +100°C	Industrial Grade Wide Temperature
Test System Impedance	50 Ohm System	Insertion Loss Test Standard

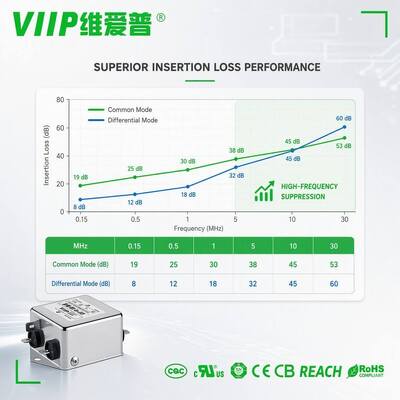

Insertion Loss Performance

Frequency (MHz)	Insertion Loss (dB)	Remarks
0.15	--	Reference Value
1	24	Typical Value

ABOVE TABLES ARE REFERENCE ONLY

Filter Circuit Structure

Item	Description
Circuit Type	RC + LC Composite Low-Pass Filter
Common Mode Suppression	Common Mode Choke L + Y Capacitors (Cy)
Differential Mode Suppression	X Capacitors (Cx1, Cx2) + Differential Mode Inductance
Discharge Resistor	Built-in Discharge Resistor R

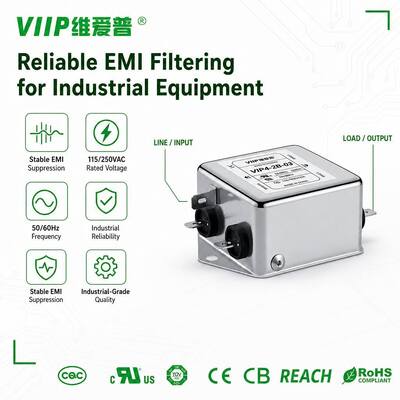

Input / Output	LINE (Input) - LOAD (Output)
Ground	GND Terminal

Product Documentation

Frequently Asked Questions

Q1: What is the rated current and voltage of VIP4-1B-20 EMI filter?

A1: Its rated current is 20A, rated voltage is 115/250VAC, working frequency 50/60Hz for single-phase AC power supply.

Q2: What interference can this EMI filter suppress?

A2: It is two-stage LC filter, good at suppressing both common-mode and differential-mode electromagnetic noise on power lines, improves EMC performance of your equipment.

Q3: What is your MOQ for VIP4-1B-20 filter?

A3: Small trial order is acceptable. For bulk orders we can offer competitive wholesale price, please send us your quantity for quotation.

Q4: What industries and devices is VIP4-1B-20 suitable for?

A4: Single-phase industrial equipment including automation machinery, laser devices, industrial controllers, testing instruments with max load 20A.

Q5: Are all dimensions of VIP4-1B-20 controlled with unified tolerance?

A5: No, tolerance is graded by size range: 0~10mm ±0.5mm, 10~100mm ±0.8mm, 100~250mm ±1.0mm to guarantee assembly compatibility.

Tags:

Power Supply Input Filter 30dB

100dB Emi Filter 10A
