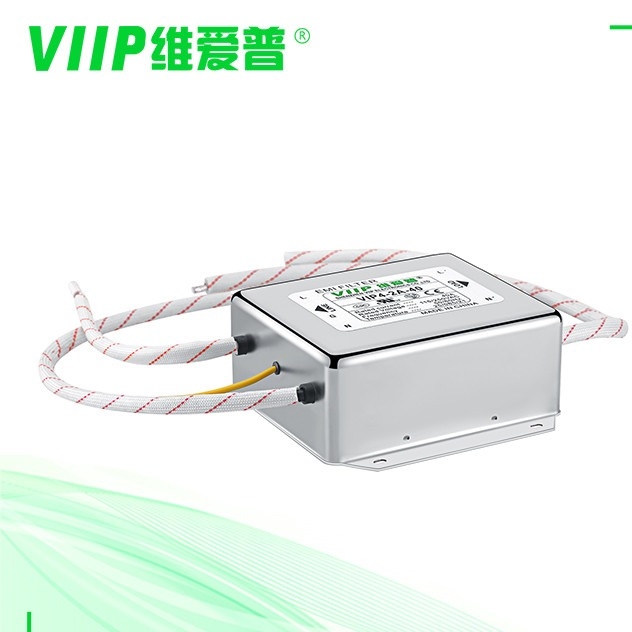

AC EMI Filter with 50 Ω Input Impedance and 50/60Hz Operating Frequency for Energy Storage Systems with AC Leakage Current Less Than 0.5mA

Brand Name:	weiaipu
Model Number:	VIP4-1B-10
MOQ:	1PCS
Packaging Details:	carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

CE Rohs TUV UL

Input Impedance:

Mounting Type:

Wire Leads

Operating Frequency:

50/60Hz

Leakage Current:

Less Than 0.5mA

Product Type:

AC Single Phase Emi Filter

Operating Temperature:

-25℃~+85℃

Transfer Function:

AC Emi Filter

Application:

Energy Storage System/ Electrical Equipment

Supply Ability:

2000PCS/WEEK

Highlight:

AC Leakage Current EMI Filter

Transfer Function EMI Filter

Electrical Equipment EMI Filter

Product Description

Energy Storage System/ Electrical Equipment AC EMI Filter with Transfer Function AC Leakage Current Less Than 0.5mA

Product Description

The AC EMI Filter is an essential component designed for air conditioner systems to reduce electromagnetic interference (EMI) and ensure optimal performance. Featuring Fast On termination style, this filter provides secure connectivity for efficient installation.

With 50 Ω input impedance, this EMI filter effectively suppresses unwanted noise and interference, delivering clean power to air conditioning systems. Optimized for 50/60Hz operation, it addresses common EMI issues in AC units.

The AC-specific transfer function makes this filter a reliable solution for mitigating electromagnetic interference, acting as a barrier against disruptive signals to ensure smooth operation. Rated for 1450VDC Line to Line voltage, it provides robust protection against power fluctuations and spikes.

Key Features

Product Name: AC EMI Filter
Current Rating: 10A
Package Type: Surface Mount
Line To Line: 1450VDC
Transfer Function: AC EMI Filter
Operating Temperature: -25℃ to +85℃

Technical Specifications

Parameter	Value
Stopband Attenuation	20~100dB
Product Type	AC Single Phase EMI Filter
Application	Energy Storage System/ Electrical Equipment
Current Rating	10A
Operating Frequency	50/60Hz
Termination Style	Fast On
Input Impedance	50 Ω

Applications

The weiaipu AC EMI Filter VIP4-1B-10 is a versatile solution for applications requiring EMI/EMC filtering, including:

Industrial machinery
Medical equipment
Telecommunications systems
Other electronics susceptible to electromagnetic interference

Certified with CE, RoHS, TUV, and UL, this filter ensures compliance with international standards. Available with a minimum order quantity of 1PCS and delivery within 5-7 days.

Support & Services

Our technical team provides comprehensive support for installation, troubleshooting, and maintenance. We offer regular product updates to keep customers informed about the latest developments.

Packaging & Shipping

Each filter is securely wrapped in bubble wrap and shipped in sturdy cardboard boxes to prevent damage during transit. We use reliable courier services and provide tracking numbers for all shipments.
