EMC EMI Filter
>

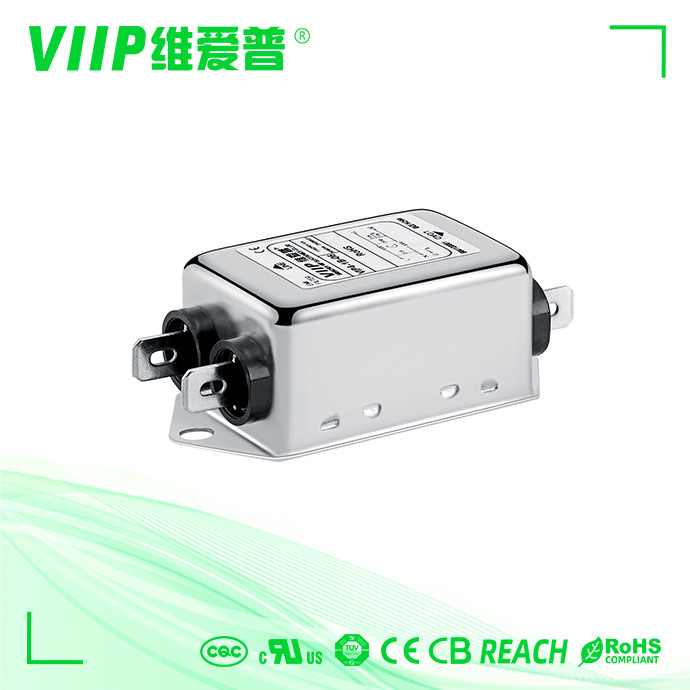

VIIP Metal Power Line EMI Filter 1A Electromagnetic Single Phase Power Line

VIIP Metal Power Line EMI Filter 1A Electromagnetic Single Phase Power Line

Brand Name: VIIP
Model Number: VIP4-3C-01
MOQ: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE UL TUV ROHS REACH
Type:
EMI EMC Filter
Rated Current:
1A
Case:
Metal
Operating Frequency:
50/60HZ
Temperature Range:
25 / 085 / 21
Application:
Electronic Equipments
Supply Ability:
2000 pcs within 10-15 days
Highlight:

single phase power line EMI Filter

,

Electromagnetic line EMI Filter

,

VIIP Metal Power Line EMI Filter

Product Description

high performance EMC Emi Filter Electromagnetic Interference Filter

VIIP Metal Power Line EMI Filter 1A Electromagnetic Single Phase Power Line 0

Quick Detail:

Item Power line EMI Filter
Model VIP4-2B-50
Original of country China
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current5 50A
Environmental Temperature 40°C
Temperature Range -25℃~+85℃
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2000VDC
Samples available
MOQ Negotiated
Price Negotiated
Lead Time 15~20 workdays





EMC EMI Filter Features:



-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- 380VAC are also available



EMC EMI Filter Applications:

1. Electrical and electronic equipment

2. Single phase servo motor

3. Datacom equipment

4. inverters and converters

5. Charging post



EMC EMI Filter Specifications:

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-1A-01 1A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-03 3A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-06 6A <0.5mA Fig 1 Fig 1 - - - - - - 0 65
VIP4-1A-10 10A <0.5mA Fig 2 Fig 1 - - - 0 - - - 75
VIP4-1B-06 6A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 140
VIP4-1B-10 10A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-20 20A <1.0mA Fig 3/Fig4 Fig 2 M4 0 - - - 170
VIP4-1B-30 30A <1.0mA Fig 5 Fig 2 M6 - - - - - - 320
VIP4-1B-50 50A <2.0mA Fig 5 Fig 2 M6 - - - - - - 600
VIP4-1B-100 100A <2.0mA Fig 5 Fig 2 M8 - - - - - - 1380
VIP4-1B-150 150A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900
VIP4-1B-200 200A <2.0mA Fig 5 Fig 2 M10 - - - - - - 1900



FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.

About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.



What is the purpose of a power filter



The purpose of a power filter is to clean and stabilize the electrical power supply. It is designed to reduce electromagnetic interference and noise in the power line, ensuring that the connected equipment receives a clean and consistent power signal. This helps to improve the performance and reliability of electronic devices and prevents damage from power surges, spikes, and other electrical disturbances. Power filters are commonly used in audio and video systems, computer equipment, and other sensitive electronics to ensure a stable and high-quality power supply.
