| Brand Name: | VIIP |
| Model Number: | VIP4-2B-10 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |

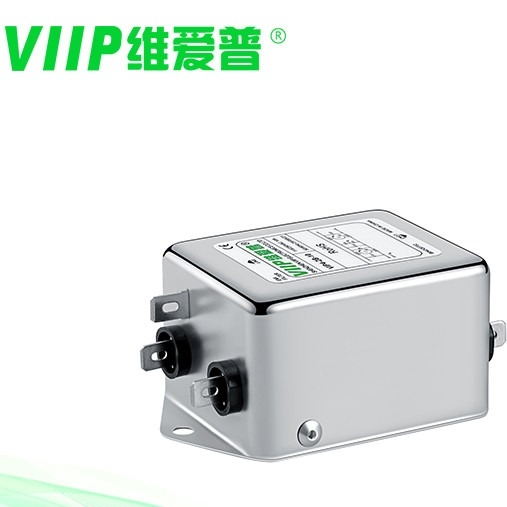

| Item number | VIP4-2B-10 |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10KHZ-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 10A |
| Original of Country | China |
| Temperature | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1760VDC |
| Line to Ground | 2200VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 5pcs |
| Packing | neutral packing |
| Lead Time | 5~15 working days |
Features:
-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device
-- Various terminal options allow you to select
-- There are a variety of parts and combinations to meet different customer's EMC tests.
-- Customized products according to customer's requirements.
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Our service
Sample
Sample Fee: Negotiate
Sample Time: 3~5 working days
Payment
---Payment terms: Western Union, T/T,Paypal
---Please remember to leave the correct contact information for delivery.
Do I need an EMI filter?
Whether you need an EMI (Electromagnetic Interference) filter depends on the specific application and the level of electromagnetic interference present in the environment. EMI filters are commonly used in electronic equipment to reduce electromagnetic interference and noise in the power supply. They are particularly beneficial for sensitive electronic devices, such as audio and video equipment, medical devices, and telecommunications systems, where clean power is essential for optimal performance.
If you are experiencing issues with electromagnetic interference affecting the performance of your electronic equipment or if you are working in an environment with high levels of electromagnetic interference, then an EMI filter may be necessary to ensure the proper functioning and protection of your devices. It is advisable to consult with an electrical engineer or a professional in the field to determine whether an EMI filter is needed for your specific application.
|
|
