| Brand Name: | VIIP |
| Model Number: | VIP4-2B-20 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Item number | VIP4-2B-20 |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10KHZ-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 20A |
| Environmental Temperature | 40°C |
| Temperature | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1760VDC |
| Line to Ground | 2200VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 5pcs |
| PORT | Shenzhen |
| Lead Time | 5~15 working days |

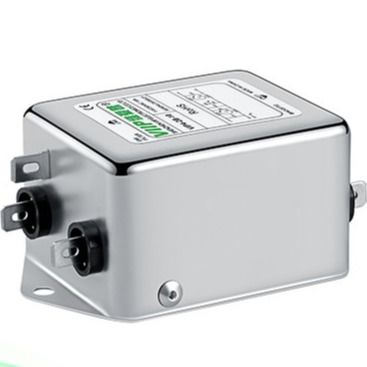

General purpose single phase AC power line filters ,easy to install ,available for
--Electrical and electronic equipment
-- Medical equipment
-- Building automation
--Industrial automation
-- Office automation and datacom equipment
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-2A-01 | 1A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 |
| VIP4-2A-03 | 3A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 |
| VIP4-2A-06 | 6A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 |
| VIP4-2A-10 | 10A | <1.0mA | Fig4 | Fig 1 | - - - | 0 | - - - | 170 |
| VIP4-2B-06 | 6A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-2B-10 | 10A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-2B-20 | 20A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 321 |
| VIP4-2B -50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 1400 |
| VIP4-2B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 2000 |
| VIP4-2B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 3000 |
| VIP4-2C-01 | 1A | <0.5mA | Fig 1 | Fig 3 | M10 | - - - | 0 | 65 |
| VIP4-2C-03 | 3A | <0.5mA | Fig 2 | Fig 3 | M10 | - - - | 0 | 95 |
| VIP4-2C-06 | 6A | <1.0mA | Fig4 | Fig 3 | M4 | 0 | - - - | 175 |
| VIP4-2C-10 | 10A | <1.0mA | Fig4 | Fig 3 | M4 | 0 | - - - | 175 |
| VIP4-2C-20 | 20A | <1.0mA | Fig 5 | Fig 3 | M4 | - - - | - - - | 600 |
| VIP4-2C-50 | 50A | <2.0mA | Fig 5 | Fig 3 | M6 | - - - | - - - | 1600 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
What does a power filter do?
A power filter, also known as an AC power filter, is a device that is used to clean and stabilize the electrical power supply. It works by reducing electromagnetic interference and noise in the power line, ensuring that the connected equipment receives a clean and consistent power signal. This helps to improve the performance and reliability of electronic devices and prevents damage from power surges, spikes, and other electrical disturbances. Power filters are commonly used in audio and video systems, computer equipment, and other sensitive electronics to ensure a stable and high-quality power supply.
|
