Product Details:
|
| Rated Current: | 6A | Type: | EMC Filter |
|---|---|---|---|
| Rated Voltage: | 110/250VAC | Nominal Center Frequency: | 150KHZ~30MHZ |
| Certification: | CE ROHS | Application: | Led Products |
| High Light: | 6A EMI Noise Suppressor,220Vac EMI Noise Suppressor,LED Lights AC EMI Filter |
||
| Item | Power line EMI Filter |
| Model | VIP4-1A-06 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Frequency Range | 150K-30MHZ |
| MOQ | 1PCS |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 6A |
| Environmental Temperature | 40°C |
Description:

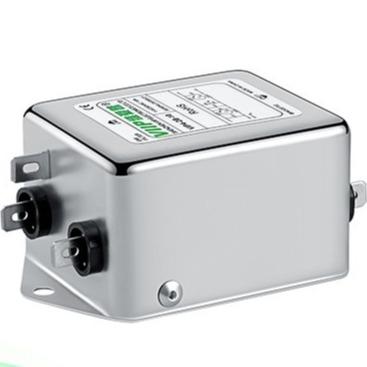

This is a 6A, 220Vac EMI noise suppressor designed for LED lighting and electronic applications. It features FASTON tabs for easy installation and removal.
Features:
•220Vac,50/60Hz,6A maximum rated current
•EMI noise attenuation up to 35dB from 500KHz to 30MHz
•Low profile,compact case for space-saving
•6 FASTON tabs for quick installation and removal
•Flame retardant, halogen-free and RoHS compliant Applications:
•LED lights: LED panel lights, LED downlights, LED spotlights, LED floodlights, etc.
•Electronic equipments: computer, server, medical equipment, security camera, etc.
•Prevent EMI noises generated from power electronics and wires
•Improve the stability and performance of sensitive equipments
•Meet EMC directives and standards This EMI noise filter suits various LED lighting and electronic applications to suppress conducted EMI noises present on 220VAC power lines. It handles maximum 6A current and provides high noise attenuation over a wide frequency range. The convenient FASTON tabs facilitate easy installation and removal, saving significant time and labor costs.
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Applications:
White household
Smart home
Smart terminal
Power supply
Power & energy
Electrical & electronic equipment
Consumer goods
medical device
datacome equipment
Sample
Sample Fee: Negotiate
Sample Time: 2~5 days
