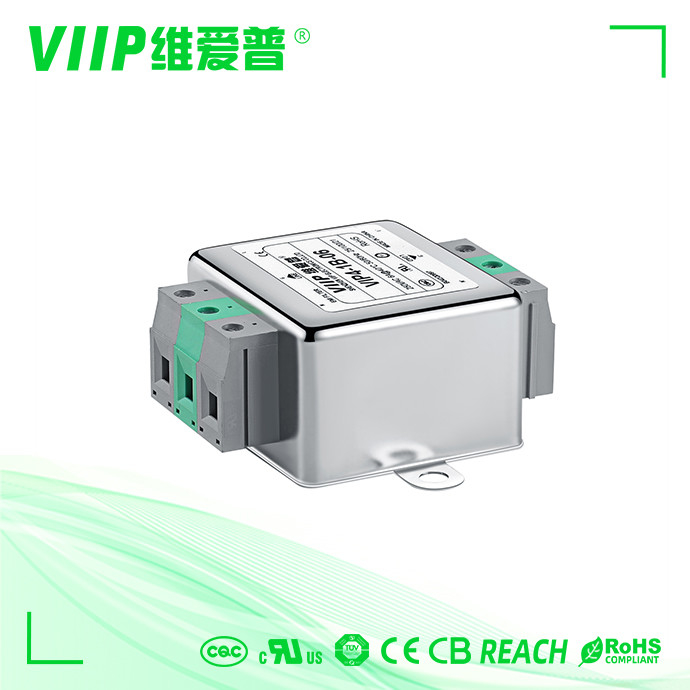

110V/250V 20A Low Pass AC EMI Filter with Terminal Block for Electronic Equipment 10KHZ-30MHZ

Brand Name:	VIIP
Model Number:	VIP4-2B-20
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV ROHS REACH

Type:

AC Single Filter

Rated Voltage:

110/250VAC

Transfer Function:

Low Pass

Application:

Electronic Equipments

Package Type:

Surface Mount

Certification:

CE ROHS,CE CQC

Supply Ability:

2000 pcs within 10-15 days

Highlight:

AC EMI Filter 110V

AC EMI Filter With Terminal Block

Low Pass Power Filter 250V

Product Description

110V 250V Low Pass Power AC EMI Filter With Terminal Block

This 2-stage enhanced EMI filter effectively prevents power supply interference in electrical devices, with multiple terminal options and customizable configurations to meet various EMC test requirements.

Quick Specifications

Item number:

VIP4-2B-20

Package Type:

Surface Mount

Nominal Center Frequency:

10KHZ-30MHZ

Insertion Loss:

60~90dB

Input Impedance:

50Ω

Rated Voltage:

110V/250V

Rated Current:

20A

Environmental Temperature:

40°C

Operating Frequency:

50/60HZ

Line to Line:

1760VDC

Line to Ground:

2200VDC

Maximum Leakage Current:

250VAC/60HZ 0.8mA Max

MOQ:

5pcs

PORT:

Shenzhen

Lead Time:

5~15 working days

Key Features

2-stage enhanced filtering design prevents power supply interference
Multiple terminal options available for flexible installation
Various configurations to meet different EMC test requirements
Customizable products based on customer specifications

Technical Specifications

Part No.	Rated Current [A]	Leakage Current [mA]	Terminals	Weight [g]
VIP4-1A-01	1A	<0.5mA	-	65
VIP4-1A-03	3A	<0.5mA	-	65
VIP4-1A-06	6A	<0.5mA	-	65
VIP4-1A-10	10A	<0.5mA	-	75
VIP4-1B-06	6A	<1.0mA	M4	140
VIP4-1B-10	10A	<1.0mA	M4	170
VIP4-1B-20	20A	<1.0mA	M4	170
VIP4-1B-30	30A	<1.0mA	M6	320
VIP4-1B-50	50A	<2.0mA	M6	600
VIP4-1B-100	100A	<2.0mA	M8	1380
VIP4-1B-150	150A	<2.0mA	M10	1900
VIP4-1B-200	200A	<2.0mA	M10	1900

Applications

Electrical and electronic equipment
Medical equipment
Datacom equipment
Office automation equipment

Frequently Asked Questions

Q: Do you offer customized products?

A: Yes, we can develop new products based on your samples, drawings, or specifications.

Q: Are you a factory?

A: Yes, we are an ISO9001 certified manufacturer specializing in EMI filter R&D, production, and sales since 2009.

Q: How long is the delivery time?

A: Small orders or stock items typically ship in 2-5 days, while mass production orders take 10-15 days after payment.

Q: What are your payment terms?

A: We typically require T/T in advance. For orders over $5000, we can negotiate terms like 70% deposit and 30% before delivery.

Q: What certifications do you have?

A: Our products are certified with ISO9001, CE, TUV, UL, ROHS, CQC, and REACH.

Q: Do you provide samples?

A: Free samples are available; customers only need to cover the courier cost.

Q: What after-sale services do you offer?

A: We provide free replacement within three months, free maintenance within six years, and life-long maintenance support.
