AC EMI Filter

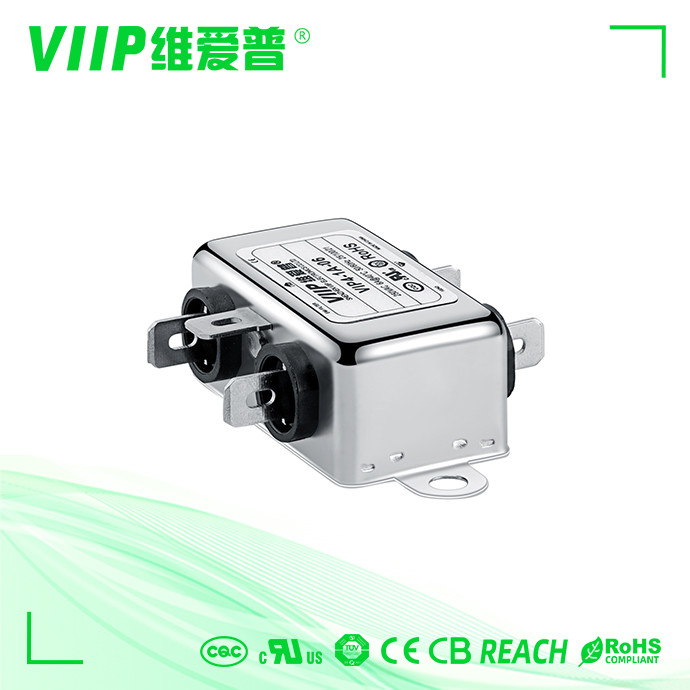

6A 220V AC EMI Filter with Faston Terminal for LED Applications 150K-30MHZ Low Pass

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

6A 220V AC EMI Filter with Faston Terminal for LED Applications 150K-30MHZ Low Pass

Brand Name:	VIIP
Model Number:	VIP4-1A-06
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Rated Current:

Type:

EMC Filter

Rated Voltage:

110/250VAC

Nominal Center Frequency:

150KHZ~30MHZ

Certification:

CE ROHS

Application:

Led Products

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Faston Terminal 220V EMI Filter

Electronic Equipments 220V EMI Filter

6A 220V AC EMI Filter

Product Description

Electronic Equipments 6A 220V EMI Filter For LED Applications Faston Terminal

Product Overview

General purpose single phase AC power line filters, easy to install, suitable for small electronic equipment and measuring instruments.

Quick Specifications

Item	Specification
Model	VIP4-1A-06
Transfer Function	Low Pass
Package Type	Surface Mount
Frequency Range	150K-30MHZ
MOQ	1PCS
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	6A
Environmental Temperature	40°C

Technical Specifications

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals	Weight [g]
VIP4-1A-01	1A	<0.5mA	Fig 1	Fig 1	- - -	65
VIP4-1A-03	3A	<0.5mA	Fig 1	Fig 1	- - -	65
VIP4-1A-06	6A	<0.5mA	Fig 1	Fig 1	- - -	65
VIP4-1A-10	10A	<0.5mA	Fig 2	Fig 1	- - -	75
VIP4-1B-06	6A	<1.0mA	Fig 3/Fig4	Fig 2	M4	140
VIP4-1B-10	10A	<1.0mA	Fig 3/Fig4	Fig 2	M4	170
VIP4-1B-20	20A	<1.0mA	Fig 3/Fig4	Fig 2	M4	170
VIP4-1B-30	30A	<1.0mA	Fig 5	Fig 2	M6	320
VIP4-1B-50	50A	<2.0mA	Fig 5	Fig 2	M6	600
VIP4-1B-100	100A	<2.0mA	Fig 5	Fig 2	M8	1380
VIP4-1B-150	150A	<2.0mA	Fig 5	Fig 2	M10	1900
VIP4-1B-200	200A	<2.0mA	Fig 5	Fig 2	M10	1900

Applications

White household appliances
Smart home systems
Smart terminal devices
Power supply units
Power & energy equipment
Electrical & electronic equipment
Consumer goods
Medical devices
Datacom equipment

Sample Information

Sample Fee: Negotiable

Sample Time: 2-5 days

Payment Options

Accepted payment methods: Western Union, T/T

Please ensure correct contact information is provided for delivery.

About VIIP

Are you a manufacturer or trading company?

Shenzhen VIIP is a manufacturer of EMI/EMC products located in Shenzhen, Guangdong, China.

What certifications do your products have?

Our products are certified with CE, ROHS, FCC and other relevant standards.

What is your MOQ?

Minimum order quantity varies by product. We maintain low MOQ requirements with substantial warehouse stock.

What shipping methods do you support?

We support air, sea and railway shipment options.

Can I order product samples?

Yes, we offer product samples, including mixed samples.

Which payment methods do you accept?

We accept T/T, PayPal, Western Union and other major payment methods.

Can I visit your company and factory in China?

Yes, we welcome visits to our facilities in Shenzhen, China.
