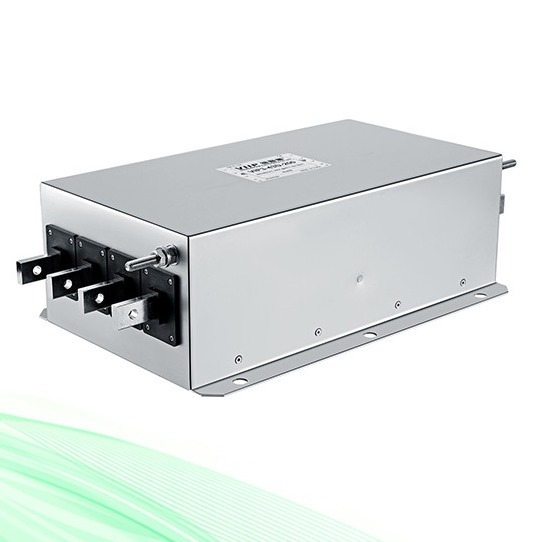

3 Phase AC EMI Filter 440V with Low Leakage Current Compact Structure and Simple Installation for Package Machine
All Category

EMC EMI Filter

Single Phase EMI Filter

3 Phase EMI Filter

Ferrite Rings Around Cables

DC EMI Filters

AC EMI Filter

IEC EMI Filter

Military EMI Filters

Inverter EMI Filter

PCB Low Pass Filter

EMI Suppression Filter

Clip On Ferrite Core

Snap On Ferrite Choke

EMI Ferrite Core

Flat Ferrite Core
Contact Us
Miss. Vicky Lee
vip6@szviip.com
19925448748
Contact Now
Name
  • Name
  • Name

3 Phase AC EMI Filter 440V with Low Leakage Current Compact Structure and Simple Installation for Package Machine

Brand Name: VIIP
Model Number: VIP3-41A-30
MOQ: 100 PCS
Price: usd
Packaging Details: 33*33*18
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE TUV UL ROHS REACH
Transfer Function:
AC 3 Phase Emi Filter
Insertion Loss:
At 50OHM System
Application:
Medical Equipments
Temperature Range:
25 / 085 / 21
Type:
EMI Filter
Rated Voltage:
250V/275/440V/480VAC
Supply Ability:
2000 pcs within 10-15 days
Highlight:

50OHM AC Emi Filter

,

AC Emi Filter 440V

,

Package Machine 3 Phase Emi Filter

Product Description
3 Phase AC EMI Filter 440V Low Leakage Current For Package Machine
Product Overview

3 Phase AC EMI Filter with 440V rating and low leakage current, specifically designed for package machines.

Key Specifications
  • Model Number: Various (see table below)
  • Type: EMI Filter
  • Origin: Shenzhen, China
  • Brand: VIIP
  • Transfer Function: Low Pass
  • Frequency Range: 10KHz-30MHz
  • Input Impedance: 50Ω
  • Insertion Loss: 20~100dB
  • Stopband Attenuation: 20~100dB
  • Rated Voltage: 440V
  • Current Range: 0.5A-800A
  • Operating Temp: 50°C
  • Certifications: cUL, TUV, ISO9001, CE, ROHS
Product Features
• Suitable for three-phase three-line power supply
• Compact structure with simple, time-saving installation
• Ideal for applications with limited space
• Highly cost-effective solution
Technical Specifications
Part No. Rated Current [A] Leakage Current [mA] Physical Dimensions Terminals Weight [g]
VIP3-41A-06 6A <2.0mA Fig 1 M4 400
VIP3-41A-10 10A <2.0mA Fig 1 M4 400
VIP3-41A-20 20A <2.0mA Fig 1 M4 600
VIP3-41A-30 30A <4.5mA Fig 1 M6 600
VIP3-41A-40 40A <4.5mA Fig 2 M6 1000
VIP3-41A-50 50A <4.5mA Fig 2 M6 1500
VIP3-41A-80 80A <8.0mA Fig 2 M8 3100
VIP3-41A-100 100A <8.0mA Fig 2 M8 3100
VIP3-41A-150 150A <8.0mA Fig 2 M10 4000
VIP3-41A-200 200A <20.0mA Fig 2 M10 4000
Typical Applications
  • Single-phase power supplies and switch-mode power supplies
  • Small to medium-sized machines and household equipment
  • Portable electrical and electronic equipment
  • Test and measurement equipment
  • Safety testers
  • Automated optical inspection (AOI) systems
  • Switch-mode power supplies (SMPS)
Quality Assurance
  • Certifications: UL, cUL, TUV, CQC, CE, ROHS, ISO9001:2015, REACH
  • Professional experimental equipment for diagnostic testing
  • Free EMC rectification technical support
  • Free test samples available
  • Automation technology and scale production for competitive pricing
  • Fast delivery and excellent service
  • Collaboration with top scientific research laboratories
  • Professional R&D team
Tags:

Termilar Block AC EMI Filter

Attenuation Low Pass Filter 20A

common mode and differential mode filter
