3 Phase EMI Filter

3 Phase EMI Filter with Very Low Leakage Current Corrosion Resistant and Compact Structure for Industrial Applications

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

3 Phase EMI Filter with Very Low Leakage Current Corrosion Resistant and Compact Structure for Industrial Applications

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-32B-100
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Transfer Function:

General Purpose

Rated Voltage:

110/250VAC

Rated Current:

Certification:

CE ROHS,ISO & TUV

Application:

Electronic Equipments

Case:

Metal

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

100A 3 Phase EMI Filter

AC 3 Phase EMI Filter

3 Phase 3 Wire EMI Filter

Product Description

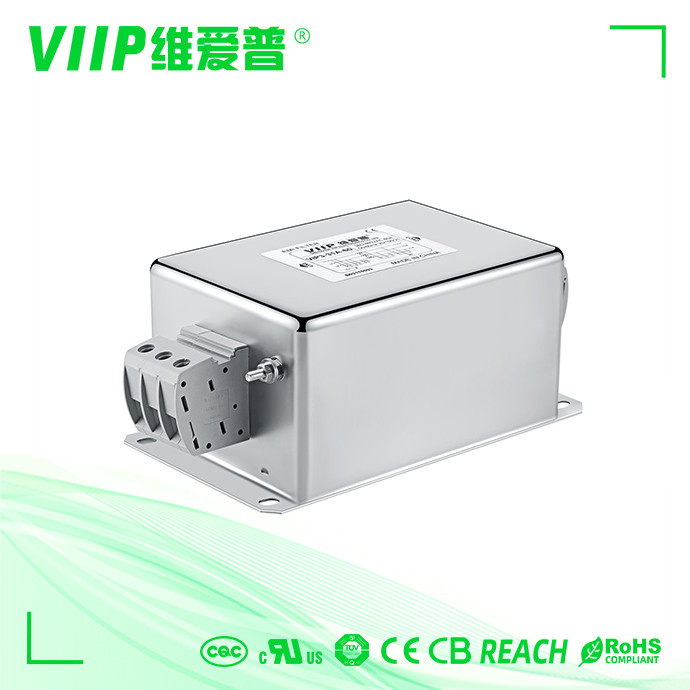

3 Phase EMI Filter with Very Low Leakage Current Corrosion Resistant and Compact Structure for Industrial Applications 0

3 Phase 3 Wire EMI Filter AC 100A - Current Resistant with Very Low Leakage Current

This 3-phase 3-wire EMI filter is designed for AC power supplies up to 100A, featuring excellent current resistance and minimal leakage current. Its compact structure enables simple, time-saving installation, making it ideal for space-constrained applications while maintaining high cost-effectiveness.

Key Features

Suitable for three-phase three-line power supply systems
Compact design for space-efficient installation
High performance with very low leakage current
Cost-effective solution for industrial applications
Robust construction for reliable operation

Technical Specifications

Item	3 Phase EMI Filter
Model	VIP3-32B-100
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	0.5~2000A
Environmental Temperature	40°C
Temperature Range	-25℃~+85℃
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	0.4mA/115V,60HZ; 0.8mA/250V, 50HZ
MOQ	Negotiated
Price	Negotiated
Lead Time	15~20 workdays

Detailed Specifications by Model

Part No.	Rated Current [A]	Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals	Weight [g]
VIP3-31A-06	6A	<2.0mA	Fig 1	Fig 1	M4	380
VIP3-31A-10	10A	<2.0mA	Fig 1	Fig 1	M4	510
VIP3-31A-20	20A	<2.0mA	Fig 1	Fig 1	M4	600
VIP3-31A-30	30A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-40	40A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-50	50A	<3.0mA	Fig 2	Fig 1	M6	1000
VIP3-31A-80	80A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-100	100A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-150	150A	<7.0mA	Fig 2	Fig 1	M10	3200
VIP3-31A-200	200A	<7.0mA	Fig 2	Fig 1	M10	3200

Electrical Schematic

Mechanical Dimension (Unit: mm)

Applications

This 3-phase EMI filter is widely used in various electrical units with connection style requirements, including printing machines, packaging machines, textile equipment, industrial air conditioners, UPS systems, medical equipment, and more.
