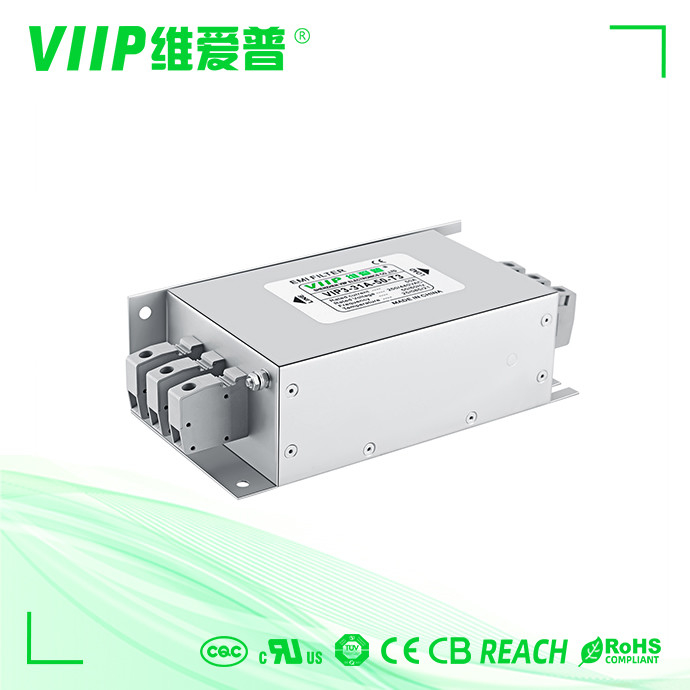

Multi Stage 1450VDC 3 Phase EMI Filter For IT Network Applications

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-31A-10
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Product Name:

AC 3 PHASE EMI FILTERS

Rated Voltage:

110/250VAC

Rated Current:

5 PCS

Type:

EMC Filter

Certification:

CE ROHS

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

3 Phase EMI Filter 1450VDC

Multi Stage 3 Phase EMI Filter

1450VDC 3 Phase EMI Filter

Product Description

Multi Stage 1450VDC 3 Phase EMI Filter For IT Network Applications

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

5, 520V AC ,690V AC can be optional

Specification:

Item	VIIP 3-phase 3-line EMI filter
Part Number	VIP3-31A
Rated voltage	250/440VAC,50/60Hz
Operating frequency	DC to 60Hz
Rated currents	3~200A@40°C
Hipot Rating	L-L 2250VDC
	L-G 2700VDC
Climatic category	-25°C~+85°C(25/85/21)
Design corresponding to	UL1283, CSA C22.2 No.8,
	IEC/EN 60939,
	CQC GB 15288/GB 15287-2008
Flammability	UL 94V-0

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals	Weight [g]
VIP3-31A-06	6A	<2.0mA	Fig 1	Fig 1	M4	380
VIP3-31A-10	10A	<2.0mA	Fig 1	Fig 1	M4	510
VIP3-31A-20	20A	<2.0mA	Fig 1	Fig 1	M4	600
VIP3-31A-30	30A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-40	40A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-50	50A	<3.0mA	Fig 2	Fig 1	M6	1000
VIP3-31A-80	80A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-100	100A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-150	150A	<7.0mA	Fig 2	Fig 1	M10	3200
VIP3-31A-200	200A	<7.0mA	Fig 2	Fig 1	M10	3200

Electrical schematic:
Multi Stage 1450VDC 3 Phase EMI Filter For IT Network Applications 0

Mechanical Dimension(Unit: mm)

Applications:

such as print machine
packing machine
textile equipment
industry air conditioner
UPS
medical equipment

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
