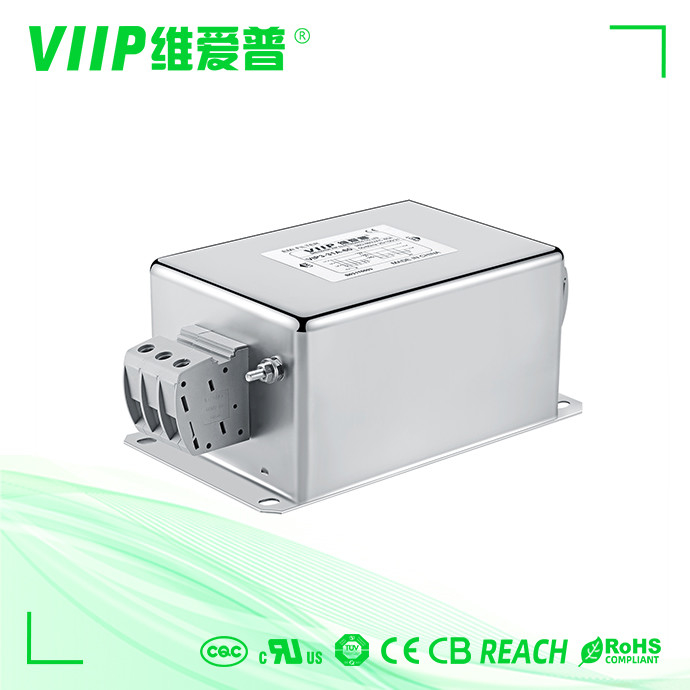

110 / 250VAC 3 Phase Power Emc Emi Filter 200A Excellent Performance

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-31A-200
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Product Name:

3 PHASE EMI FILTERS

Rated Voltage:

110/250VAC

Rated Current:

5 PCS

Type:

3 Phase Filter

Certification:

CE ROHS

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Power Emc Emi Filter

3 Phase Emc Emi Filter

3 Phase EMI Filter 200A

Product Description

200A Excellent Performance 3 Phase Noise Emc Emi Filter

Features:

Protection against interference of voltage.
Advanced two-stage filtering circuits with high saturating resistant toroidal inductors
Customized products according to customer's requirements

Specification:

Item	VIIP 3-phase 3-line EMI filter
Part Number	VIP3-31A-60
Rated voltage	250/440VAC,50/60Hz
Operating frequency	DC to 60Hz
Rated currents	3~200A@40°C
Hipot Rating	L-L 2250VDC
	L-G 2700VDC
Climatic category	-25°C~+85°C(25/85/21)
Design corresponding to	UL1283, CSA C22.2 No.8,
	IEC/EN 60939,
	CQC GB 15288/GB 15287-2008
Flammability	UL 94V-0

Specifications:

Tabulates

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals	Weight [g]
VIP3-31A-06	6A	<2.0mA	Fig 1	Fig 1	M4	380
VIP3-31A-10	10A	<2.0mA	Fig 1	Fig 1	M4	510
VIP3-31A-20	20A	<2.0mA	Fig 1	Fig 1	M4	600
VIP3-31A-30	30A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-40	40A	<2.0mA	Fig 1	Fig 1	M6	640
VIP3-31A-50	50A	<3.0mA	Fig 2	Fig 1	M6	1000
VIP3-31A-80	80A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-100	100A	<7.0mA	Fig 2	Fig 1	M8	3000
VIP3-31A-150	150A	<7.0mA	Fig 2	Fig 1	M10	3200
VIP3-31A-200	200A	<7.0mA	Fig 2	Fig 1	M10	3200

Electrical schematic:

110 / 250VAC 3 Phase Power Emc Emi Filter 200A Excellent Performance 0

Mechanical Dimension(Unit: mm)

110 / 250VAC 3 Phase Power Emc Emi Filter 200A Excellent Performance 1

110 / 250VAC 3 Phase Power Emc Emi Filter 200A Excellent Performance 2

Applications:

such as print machine

packing machine

textile equipment

industry air conditioner

UPS

medical equipment

FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.

About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.
.
