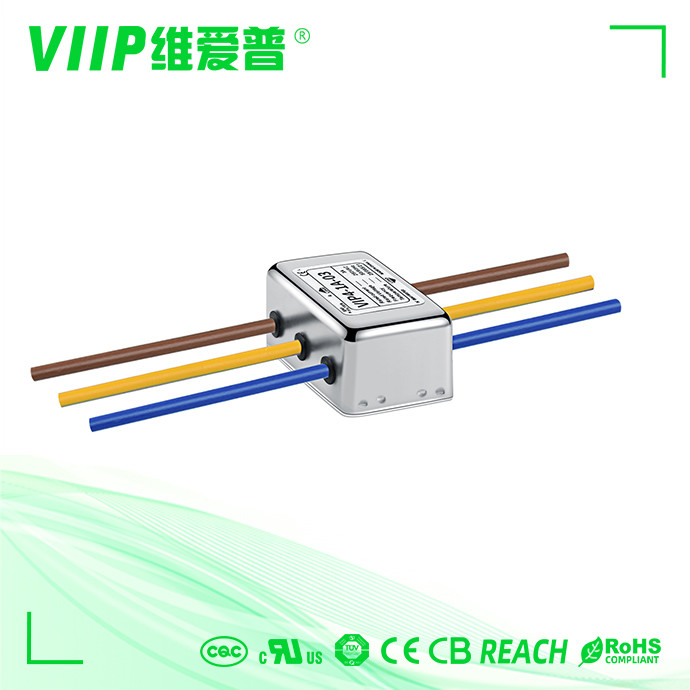

Name: 150KHZ-30MHZ Single Phase EMI Filters With Wire Leads ROHS Approved
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP4-1B-06
Price: 6.00 USD
Availability: InStock

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-1B-06
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Rated Current:

Type:

EMC Filter

Transfer Function:

AC EMI Filter

Nominal Center Frequency:

10KHZ~30MHZ

Certification:

CE ROHS

Application:

Medical Equipment

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Yes

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

150KHZ Single Phase EMI Filters

30MHZ Single Phase EMI Filters

Wire Leads Single Phase EMI Filter

Product Description

150KHZ-30MHZ Single PhaseEMI Filters With Wire Leads

AC single phase emi filter Quick Detail:

Place of Origin	China
Model Number	VIP4-1B-06
Input Impedance	50Ω
Insertion Loss	30-100dB
Line To Line	1760VDC
Nominal Center Frequency	10KHZ~30MHZ
Certificate	ISO9001 CE ROHS cUL TUV
Operating Frequency	50/60HZ
Temperature Range	25 / 085 / 21

Features and Benefits:

More than two levels of fitering. 10 KHz一30 MHz broadbandhigh efficiencyfiltering,especally enhance the low- frequency filteringeffect between 10 KHz150 KHz.

Designed secialy for the tansmssion of military equipment through CE102 inGJB151A/ 152A

Work frequency. rated voltage to meet different requirements, rapid customizationdesign.

Designed for Common Mode Emissions or Susceptibility Application

Specifications for ac single phase emi filter :

150KHZ-30MHZ Single Phase EMI Filters With Wire Leads ROHS Approved 0

150KHZ-30MHZ Single Phase EMI Filters With Wire Leads ROHS Approved 1
