110 / 250v EMC AC EMI Filter For Industrial Lighting Fixture

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-1A-03(B041W0638)
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Type:

EMI EMC Filter

Application:

Lighting Fixture

Rated Current:

Temperature Range:

25 / 085 / 21

Input Impedance:

Package Type:

Surface Mount

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

1760VDC AC EMI Filter

90dB EMC EMI Filter

Industrial Lighting Fixture EMC EMI Filter

Product Description

AC 110/250v EMC EMI Filter For industrial lighting fixture

VIP4-1A-03(B041W0638) Rev 4.0.pdf

Quick Detail:

Item	EMC EMI Filter
Model	VIP4-1A-03
Original of country	China
Package Type	hole
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	3A
Temperature	40°C
Temperature Range	-25℃~+85℃
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2000VDC
Samples	available
MOQ	1 PCS
Price	Negotiated
Lead Time	3~20 workdays

Features:

-- high performance AC filters with much better common and differential mode attenuation performance and low frequency filtering effect.

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- 380VAC are also available

Applications:

1. commercial and building equipment

2.Power supplies

3. Gaming machines

4. lighting fixture

5. Single phase industrial applications

6. variable speed drivers

7. driver motor and controllers

Specifications:

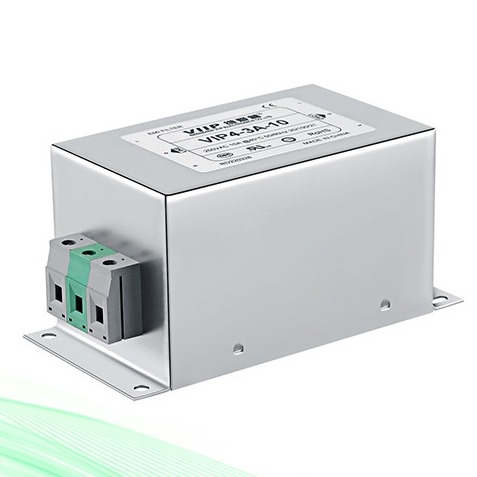

110 / 250v EMC AC EMI Filter For Industrial Lighting Fixture 0

FAQ:

Q1:How about the certificates?

A:ISO 9001, TUV, UL, CE, CQC, CB, ENEC, ROHS, REACH etc.

Q2: Are you a factory?
A: Yes, we have been a professional manufacturer of EMI&EMC FILTER and ferrite core since 2009.

Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4: How about the payment terms?
A: We usually require T/T in advance. we also accept other payment methods.

Q5: Do you offer customized product ?
A: Yes, we can develop a new mold as your requirement if you can provide us with the samples or drawings and specifications.

Q6: How about the samples?
A: Free samples. You need to pay for freight cost. Please contact us for details.

We Can Provide EMC technical rectification and always can custom product as your requirement to pass the EMC test. Let's talk in details.

Our Company
We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality

We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.

Free EMC rectification technical support and provide free test sample

Automation technology, scale production, excellent price

We have a professional R&D team
