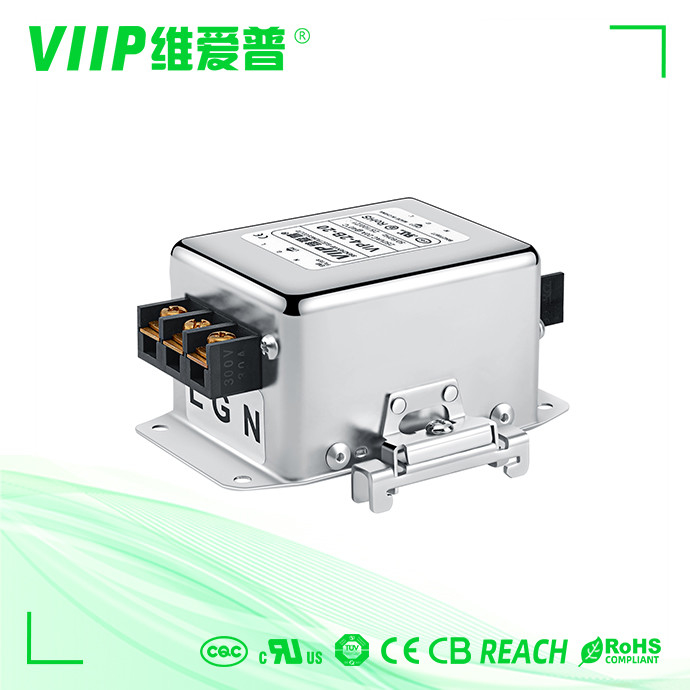

250VAC Electrical EMC EMI Filter For Television Power Supplies

250VAC Electrical EMC EMI Filter For Television Power Supplies

Brand Name: VIIP
Model Number: VIP4-3A-10
MOQ: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE UL TUV ROHS REACH
Rated Current:
10A
Type:
EMI EMC Filter
Case:
Metal
Application:
Power Supplies
Certification:
CE ROHS,ISO & TUV
MOQ:
1 PCS
Supply Ability:
2000 pcs within 10-15 days
Highlight:

10A EMI Power Filter

,

250VAC EMC EMI Filter

,

Television Power Supplies EMC EMI Filter

Product Description

250VAC Electrical EMI Power for EMI Filter For Television power supplies

EMI Filter Quick Detail:

Item Power line EMI Filter
Model VIP4-3C-10
Original of country China
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 10A
Temperature 40°C
Insertion Loss 30-100dB
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2000VDC
Samples available
MOQ 1 PCS
Price Negotiated
Port Shenzhen




 EMC EMI Filter Features:

-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- 380VAC are also available



EMC EMI Filter Applications:

1. Electrical and electronic equipment

2. Single phase servo motor

3. Datacom equipment

4. inverters and converters

5. Charging post

6. Electric vehicle

EMC EMI Filter Specifications:

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-3A-01 1A <1.5mA Fig 1 Fig 1 - - - - - - 0 95
VIP4-3A-03 3A <1.5mA Fig 2 Fig 1 - - - 0 - - - 145
VIP4-3A-06 6A <1.5mA Fig 3 Fig 1 M4 - - - - - - 450
VIP4-3A-10 10A <2.5mA Fig 3 Fig 1 M4 - - - - - - 550
VIP4-3A-20 20A <2.5mA Fig 3 Fig 1 M6 - - - - - - 550
VIP4-3A-50 50A <2.5mA Fig 3 Fig 1 M6 - - - - - - 3300
VIP4-3A-100 100A <4.0mA Fig 3 Fig 1 M8 - - - - - - 3400
VIP4-3A-150 150A <4.0mA Fig 3 Fig 1 M10 - - - - - - 3600



Electrical schematic:

250VAC Electrical EMC EMI Filter For Television Power Supplies 0



 EMI Filter Mechanical Dimension(Unit: mm)

250VAC Electrical EMC EMI Filter For Television Power Supplies 1






Our company about emi filter products

1.Customized:We have a professional R&D team; our aims is we won't let customers spend any extra money.
2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.
3.Rectification test: We cooperate with top scientific research laboratories to provide free
EMC rectification technical support, samples; and free conduction test.
4.Scale production:Automation technology, scale production, great price,excellent, service,

FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.
About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.
About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.

About Service

Q: Which payments are acceptable?
A:We accept T/T, Paypal, Western Union ect.
Q: Can I visit your company and factory in China?
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces.
