AC EMI Filter
>

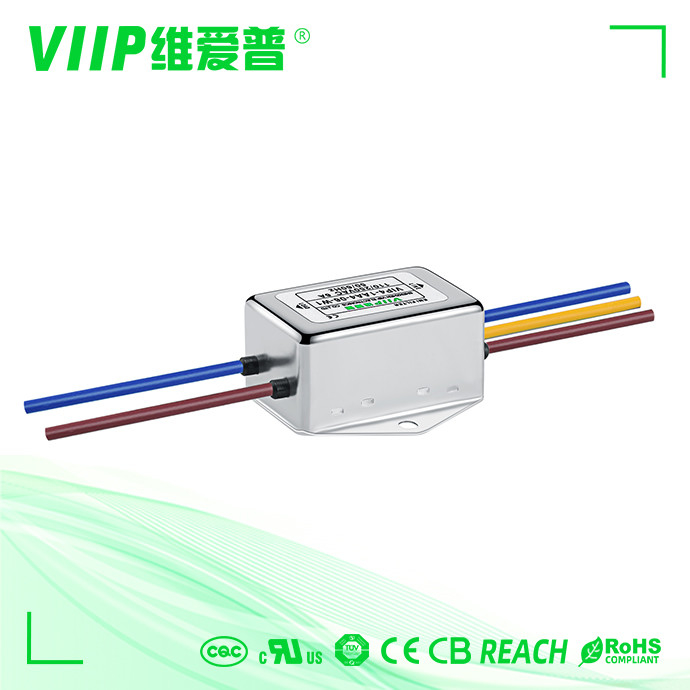

Low Pass Power Line AC EMI Filter 110V 250V With Wire Leads

Low Pass Power Line AC EMI Filter 110V 250V With Wire Leads

Brand Name: VIIP
Model Number: VIP4-2B-20
MOQ: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE TUV ROHS REACH
Type:
AC Single Filter
Rated Voltage:
110/250VAC
Transfer Function:
Low Pass
Application:
Electronic Equipments
Package Type:
Surface Mount
Certification:
CE ROHS,CE CQC
Supply Ability:
2000 pcs within 10-15 days
Highlight:

EMI Filter 110V With Wire Leads

,

power line emi filter 110V 250V

,

Low Pass AC EMI Filter 110V

Product Description

Low Pass With Wire Leads AC EMI FILTER Power Line Filter 110V 250V

Quick Detail:



Item number VIP4-2B-20
Package Type Surface Mount
Nominal Center Frequency 10KHZ-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 20A
Environmental Temperature 40°C
Temperature 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2200VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 5pcs
PORT Shenzhen
Lead Time 5~15 working days







Features:



-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device



-- Various terminal options allow you to select



-- There are a variety of parts and combinations to meet different customer's EMC tests.



-- Customized products according to customer's requirements.



Specifications:

Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-2A-01 1A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-03 3A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-06 6A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-10 10A <1.0mA Fig4 Fig 1 - - - 0 - - - 170
VIP4-2B-06 6A <1.0mA Fig4 Fig 2 M4 0 - - - 170
VIP4-2B-10 10A <1.0mA Fig4 Fig 2 M4 0 - - - 170
VIP4-2B-20 20A <1.0mA Fig4 Fig 2 M4 0 - - - 321
VIP4-2B -50 50A <2.0mA Fig 5 Fig 2 M6 - - - - - - 1400
VIP4-2B-100 100A <2.0mA Fig 5 Fig 2 M6 - - - - - - 2000
VIP4-2B-200 200A <2.0mA Fig 5 Fig 2 M8 - - - - - - 3000
VIP4-2C-01 1A <0.5mA Fig 1 Fig 3 M10 - - - 0 65
VIP4-2C-03 3A <0.5mA Fig 2 Fig 3 M10 - - - 0 95
VIP4-2C-06 6A <1.0mA Fig4 Fig 3 M4 0 - - - 175
VIP4-2C-10 10A <1.0mA Fig4 Fig 3 M4 0 - - - 175
VIP4-2C-20 20A <1.0mA Fig 5 Fig 3 M4 - - - - - - 600
VIP4-2C-50 50A <2.0mA Fig 5 Fig 3 M6 - - - - - - 1600



Electrical schematic:



Low Pass Power Line AC EMI Filter 110V 250V With Wire Leads 0

Mechanical Dimension(Unit: mm)



Our Company



We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality



We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.



Free EMC rectification technical support and provide free test sample



Automation technology, scale production, excellent price



Good service, fast delivery!



Cooperate with the top scientific research laboratory



We have a professional R&D team
