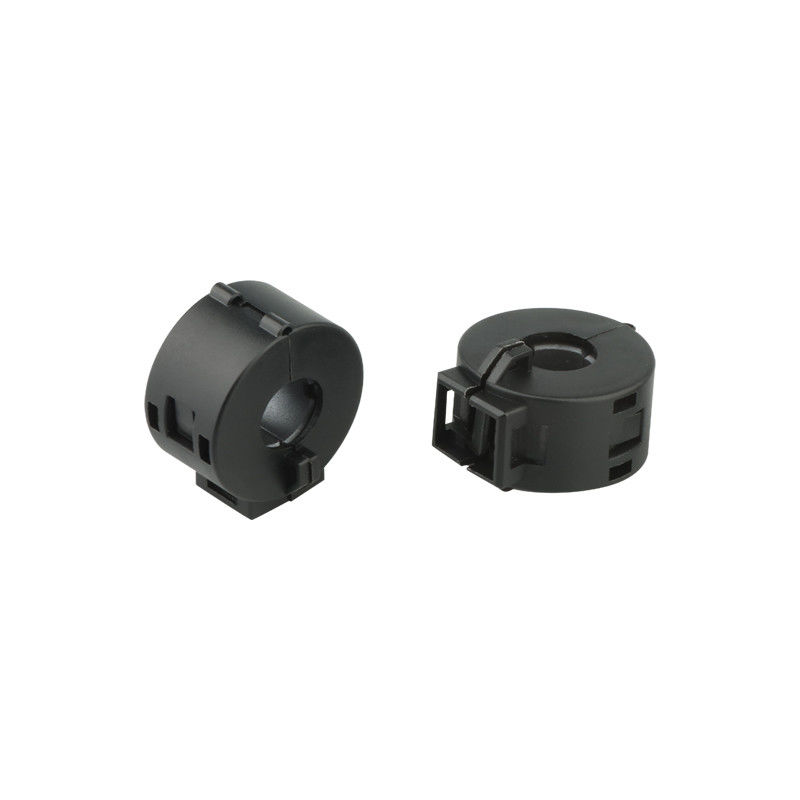

VIIP 15mm RFI EMI Filter Snap On Ferrite Choke

Brand Name:	VIIP
Model Number:	V18018
MOQ:	100PCS
Price:	Negotiable
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

Rohs Reach

Type:

Clap-on

Material:

Product Name:

Snap On Ferrite Core

Application:

For VGA Cables

Color:

Black

Model:

V18018

Supply Ability:

5k For one week

Highlight:

EMI Filter Snap On Ferrite Choke

15mm RFI EMI Ferrite Choke

VIIP 15mm Snap On Ferrite Choke

Product Description

VIIP 15mm Ferrite Cores Ring Clip-On RFI EMI Filter Cable Clip Different Items

Quick Detail:

Place of Origin:Guangdong, China
Brand Name:VIIP
Model Number:V18018
Type:Soft
Composite:Ferrite Magnet
Shape:Cylindrical

Description:

RFI EMI Noise Suppressor Cable Clip:EMI RFI Noise Filter Clip;Ferrite core with plastic cover; Helps to reduce EMI on AC power lines.

Ferrite Cores:Reduce electro-magnetic interference and improve signal integrity; Easy to install, just clip it on and you will get clearer signal and faster data transmission.

Specifications:

No.	Specifications	Fig	Dimensions:mm					Impedance(Ω)min
No.	Specifications	Fig	ΦA	B	ΦC	D	E	25MHz	100MHz
1	V18001A	1	13±1	11.8±1	3.5±0.8	25.2±1	2.5±1	135	260
2	V18001	1	13±1	12±1	5±0.8	25.2±1	2.5±1	90	190
3	V18002	1	16.5±1	14±1	7±0.8	30±1	2.5±1	80	195
4	V18002C	5	20.7±1	39.4±1	7.2±0.5	/	/	120	220
5	V18003	1	19.5±1	18±1	9±0.8	35±1	5.5±1	100	240
6	V18004	1	23.5±1	22.2±1	13.5±0.8	36±1	10.5±1	90	190
7	V18005	2	17.5±1	19.5±1	6.5±0.8	32.5±1	/	135	330
8	V18006	2	22±1	23.5±1	10±0.8	33±1	/	90	250
9	V18007	2	29±1	30±1	13±0.8	32.2±1	/	160	280
10	V18008	3	19.5±1	23±1	8±0.8	17±1	23±1	70	140
11	V18009	3	19.5±1	23±1	8±0.8	19.5±1	26±1	80	160
12	V18010	4	15±1	14±1	7±1	18±1	22±1	45	125
13	V18011	4	19.5±1	/	9±1	32±1	36±1	105	185
14	V18011A	4	20.5±1	20.5±1	11±0.8	32±1	36±1	80	155
15	V18011B	3	28±1	31±1	11.4±0.8	17.5±1	23.5±1	75	135
16	V18012	4	30±1	/	13±0.8	34±1	39±1	125	230
17	V18013	5	16.5±1	29.5±1	5±0.8	/	/	80	165
18	V18017	4	40.5±1	/	17±1	49.8±1	/	200	350
19	V18018	3	29±1	33±1	15±0.8	15.5±1	21.5±1	55	110
20	V18019	1	19.5±1	18±1	8±0.8	35±1	5.5±1	120	175
21	V18020	3	24±1	27±1	10±0.8	13.5±1	19±1	60	110
22	V18021	1	11.7±1	10.8±1	4±0.8	21.4±1	2.6±1	90	160
23	V18031	2	15±1	14±1	6±1	23±1	/	80	160
24	V18032	1	19.5±1	18.0±1	5.0±1	35±0.8	/	190	320
25	V18033	4	19.5±1	/	8±0.8	32±1	36±1	120	175

VIIP 15mm RFI EMI Filter Snap On Ferrite Choke 0

Applications:

Application: HDMI Cable, IP Line of Communication, DVI Cable, Overstriking VGA Cable etc.

VIIP 15mm RFI EMI Filter Snap On Ferrite Choke 1

VIIP 15mm RFI EMI Filter Snap On Ferrite Choke 2

VIIP 15mm RFI EMI Filter Snap On Ferrite Choke 3

FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.

About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.

About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.

(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.

(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.

(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
