EMI Ferrite Core
>
VIIP Isolator EMI Ferrite Core Toroid

VIIP Isolator EMI Ferrite Core Toroid

Brand Name: VIIP
Model Number: V180322H
MOQ: 100PCS
Price: Negotiable
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
china
Certification:
Rohs Reach
Material:
Nizn
Product Name:
Ferrite Materials
Application:
For Transformers
Model:
V180322H
Supply Ability:
5k For one week
Highlight:

Isolator EMI Ferrite Core Toroid

,

VIIP EMI Ferrite Core Toroid

,

VIIP Isolator EMI Ferrite Core

Product Description

EMI Ferrite Core Transformer Ferrite Core Ferrite Toroid Core



Quick Detail:





  • 1.Model:Transformer ferrite core /isolator ferrite ring
  • 2.Part number :V180322H
  • 3.Size:OD=17.42mm ID=9.53mm H=28.58mm
  • MOQ:100 pcs

​Dimension (mm)

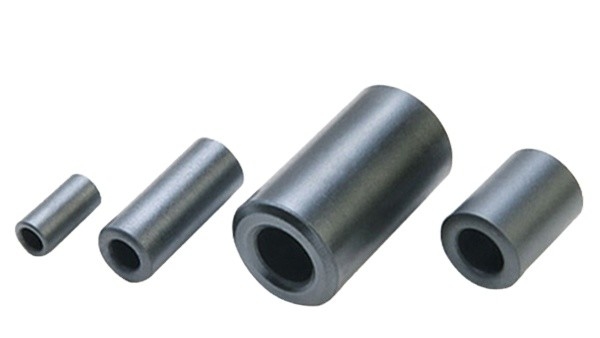

VIIP Isolator EMI Ferrite Core Toroid 0

A 17.42 ± 0.5mm
B 28.58 土 0.75mm
C 9.53 ± 0.3 mm

Description:



This is a ferrite ring, not a magnet. It has no magnetism.

It has the characteristics of isolating eddy current, low permeability and restraining interference.






Electric characteristics



项目 TEST ITEM

电气性能

ELECTRIC CHARACTERISTICS

尺寸(单位:毫米)

DIMENSION (unit:皿)

Q L Zl Z2 Z3 Z4 A B c D E F
    144REF 214 410REF   17. 42 28.58 9, 53
      0. 5 0. 75 0.3
          0. 5 0. 75 0.3
1     138. 6 218. 2 441. 2   17. 30 28.30 9. 35
2     140. 2 228.4 440.4   17. 40 28.40 9. 37
3     140. 0 228. 2 438.2   17. 20 28.20 9.40
4     139. 7 223. 0 439.0   17. 29 28.32 9.43
5     140. 4 218. 6 440.6   17. 35 28.34 9.41
6     138. 2 218.4 441. 4   17. 36 28.28 9.45
7     139. 3 219. 1 441. 1   17. 144 28.25 9. 38
8     138.8 220.8 438.8   17. 28 28.33 9. 36
9     139. 9 221. 6 438.6   17. 27 28.29 9.44
10     140. 1 220.4 439.4   17. 19 28.31 9.41
x     139. 52 221. 67 439.87   17. 30 28.30 9.40
Y I N     y y y   y y y



Specifications:

VIIP Isolator EMI Ferrite Core Toroid 1



Applications:

Used widely in power transformers, current transducers, instrument transformers, inductors, chokes, ballasts, voltage stabilizers and regulators, welding transformers, broad band transformers, filters, etc.









VIIP Isolator EMI Ferrite Core Toroid 2



FAQ:
Q:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2009.


Q: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
