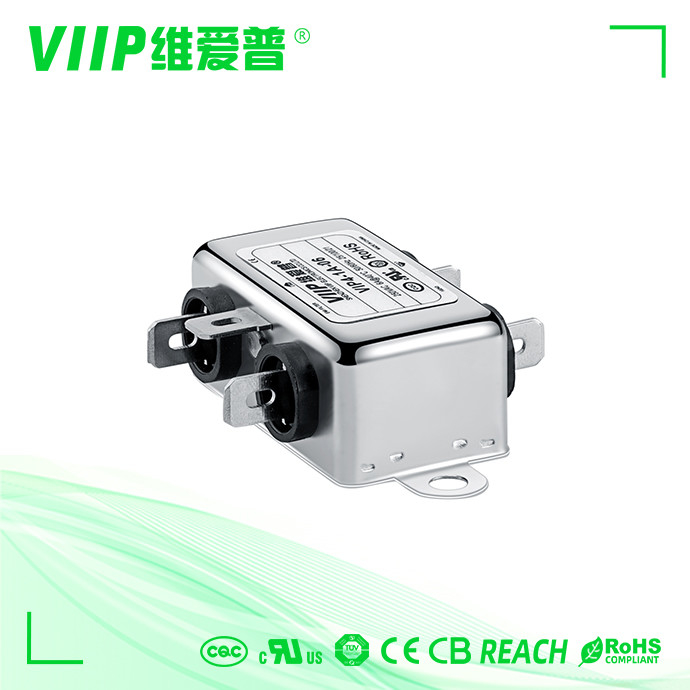

Name: Medical 240V RFI Mains Filter EMC EMI Filter For AC Power Supply
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP4-1A-10
Price: 14.05 USD
Availability: InStock

Brand Name:	VIIP
Model Number:	VIP4-1A-10
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Rated Current:

10A

Type:

AC EMI Filter

Nominal Center Frequency:

150KHZ~30MHZ

Line To Line:

1760VDC

Application:

Medical Equipments

Operating Frequency:

50/60HZ

Supply Ability:

2000 pcs within 10-15 days

Highlight:

EMC EMI Filter For AC Power Supply

AC Power Supply RFI Mains Filter

Medical 240V RFI Mains Filter

Product Description

Medical Equipment AC Emi Filter EMC RFI 240V AC Mains Filter Power Supply

Quick Detail:

Technical Specification:

Item	Power line Filter
Model	Power line Filter VIP4
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	0.5~300A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2200VDC
Maximum Leakage Current	250VAC/60HZ 1.0mA Max
MOQ	5pcs
Port	Shenzhen
Lead Time	5~15 working days

General purpose single phase AC power line filters ,easy to install ,available for

--Electrical and electronic equipment

-- Medical equipment

-- Building automation

-- Office automation and datacom equipment

Specifications for single phase emi filters:

General purpose AC filters with good attenuation frequency range 150KHz-30MHz

VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current

Compact structure, high performance-cost ratio, easy to install,safe and reliable

High voltage versions above 380VAC are also available

tabulates

Rated current: 0.5A-300A
Various terminals: wire, solder lug, stud, terminal block ,etc
Optional medical versions(H type)
Custom specific versions are available on request

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP1-1A-01	1A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP1-1A-03	3A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP1-1A-06	6A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP1-1A-10	10A	<0.5mA	Fig 2	Fig 1	- - -	0	- - -	75
VIP4-1B-06	6A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	140
VIP4-1B-10	10A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-20	20A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-30	30A	<1.0mA	Fig 5	Fig 2	M6	- - -	- - -	320
VIP4-1B-50	SOA	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	600
VIP4-1B-100	100A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	1380
VIP4-1B-150	150A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900
VIP4-1B-200	200A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900

Sample

Sample Fee: Negotiate

Sample Time: 2~5 days

Payment

---Payment terms: Western Union, T/T

---Please remember to leave the correct contact information for delivery.
