Name: Single Phase Two Stage AC EMI Filter 20A
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP4-1B-20
Price: 14.05 USD
Availability: InStock

Brand Name:	VIIP
Model Number:	VIP4-1B-20
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Rated Current:

20A

Type:

EMC Filter

Rated Voltage:

110/250VAC

Transfer Function:

AC EMI Filter

Nominal Center Frequency:

150KHZ~30MHZ

Certification:

CE ROHS

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Two Stage AC EMI Filter 20A

Single Phase AC EMI Filter 20A

Two Stage Single Phase EMI Filter

Product Description

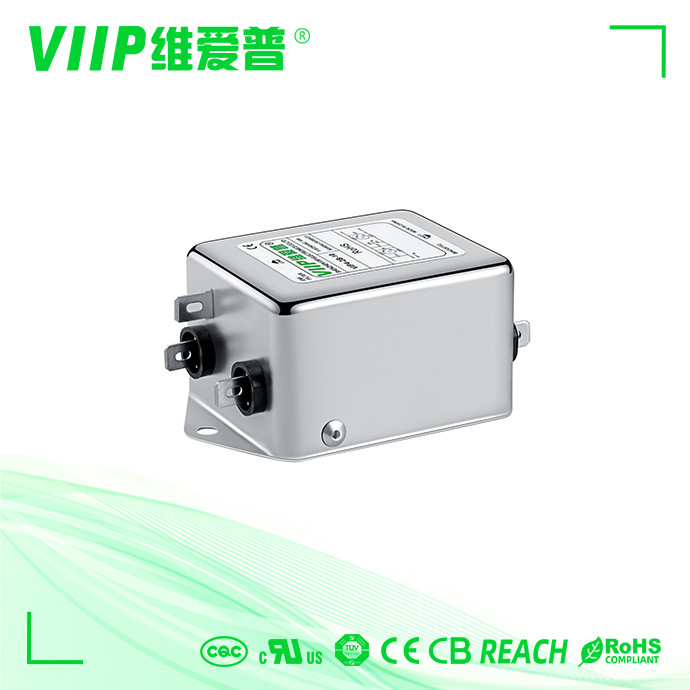

Single Phase two-stage EMI Filter with enhanced performance For Alarms Security system 20A

Quick Detail:

Item	Power line EMI Filter
Model	VIP4-1B-20
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	0.5~300A
Environmental Temperature	40°C

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument

Specifications for single phase emi filters:

General purpose AC filters with good attenuation frequency range 150KHz-30MHz

VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current

Compact structure, high performance-cost ratio, easy to install,safe and reliable

High voltage versions above 380VAC are also available

tabulates
