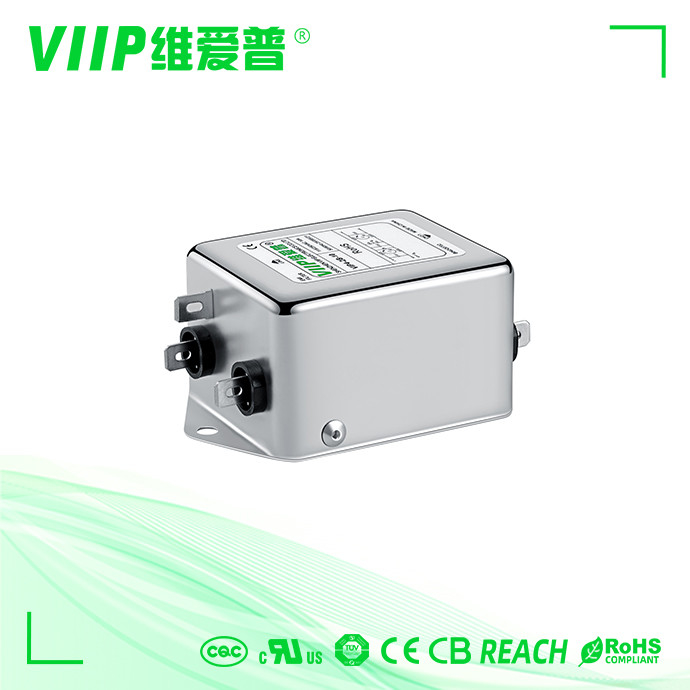

Single Phase Two Stage AC EMI Filter 20A with 150KHZ~30MHZ Frequency Range and Compact Structure

Brand Name: VIIP
Model Number: VIP4-1B-20
MOQ: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE TUV UL ROHS REACH
Rated Current:
20A
Type:
EMC Filter
Rated Voltage:
110/250VAC
Transfer Function:
AC EMI Filter
Nominal Center Frequency:
150KHZ~30MHZ
Certification:
CE ROHS
Supply Ability:
2000 pcs within 10-15 days
Highlight:

Two Stage AC EMI Filter 20A

,

Single Phase AC EMI Filter 20A

,

Two Stage Single Phase EMI Filter

Product Description
Single Phase Two Stage AC EMI Filter 20A
Product Description

General purpose single phase AC power line EMI filter with enhanced performance for alarms and security systems. Compact design with easy installation, suitable for small electronic equipment and measuring instruments.

Quick Specifications
Item Specification
Model VIP4-1B-20
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 0.5~300A
Environmental Temperature 40°C
Key Features
  • General purpose AC filters with excellent attenuation (150KHz-30MHz range)
  • Compact structure with high performance-cost ratio
  • Easy to install, safe and reliable operation
  • High voltage versions available (above 380VAC)
Technical Specifications
Part No. Rated Current [A] Leakage Current [mA] Terminals Weight [g]
VIP4-1B-06 6A <1.0mA M4 140
VIP4-1B-10 10A <1.0mA M4 170
VIP4-1B-20 20A <1.0mA M4 170
VIP4-1B-30 30A <1.0mA M6 320
VIP4-1B-50 50A <2.0mA M6 600
Applications
  • White household appliances
  • Smart home systems
  • Smart terminals
  • Power supply units
  • Power & energy equipment
  • Electrical & electronic devices
  • Consumer goods
  • Medical devices
  • Datacom equipment
Ordering Information

Sample Fee: Negotiable

Sample Time: 3-5 days

Payment Terms: Western Union, T/T

Please ensure correct contact information is provided for delivery.
