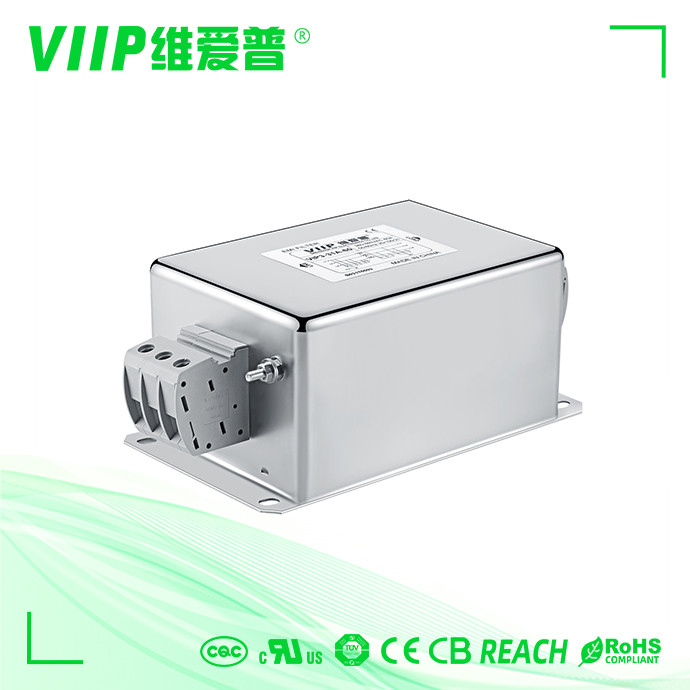

3 Phase 3 Wire Emi Filter AC 100A Filter Current Resistant EMI Filter Very Low Leakage Current
Description:
suitable for three phase three line power supply
compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective
Specification:
| Item | 3 Phase EMI Filter |
| Model | VIP3-32B-100 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 0.5~2000A |
| Environmental Temperature | 40°C |
| Temperature Range | -25℃~+85℃ |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 0.4mA/115V,60HZ; 0.8mA/250V, 50HZ |
| MOQ | Negotiated |
| Price | Negotiated |
| Lead Time | 15~20 workdays |
More details:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| VIP3-31A-06 | 6A | <2.0mA | Fig 1 | Fig 1 | M4 | 380 |
| VIP3-31A-10 | 10A | <2.0mA | Fig 1 | Fig 1 | M4 | 510 |
| VIP3-31A-20 | 20A | <2.0mA | Fig 1 | Fig 1 | M4 | 600 |
| VIP3-31A-30 | 30A | <2.0mA | Fig 1 | Fig 1 | M6 | 640 |
| VIP3-31A-40 | 40A | <2.0mA | Fig 1 | Fig 1 | M6 | 640 |
| VIP3-31A-50 | 50A | <3.0mA | Fig 2 | Fig 1 | M6 | 1000 |
| VIP3-31A-80 | 80A | <7.0mA | Fig 2 | Fig 1 | M8 | 3000 |
| VIP3-31A-100 | 100A | <7.0mA | Fig 2 | Fig 1 | M8 | 3000 |
| VIP3-31A-150 | 150A | <7.0mA | Fig 2 | Fig 1 | M10 | 3200 |
| VIP3-31A-200 | 200A | <7.0mA | Fig 2 | Fig 1 | M10 | 3200 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Applications:
Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc
|
|
